Description

**Overview**

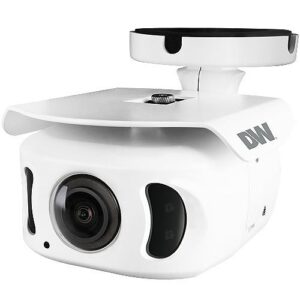

This 8MP ultra-wide-view bullet IP camera is compliant with industry standards, offering real-time 30fps high-definition video with a 2.3mm ultra-wide lens for expansive situational awareness at a remarkably short focal length. The camera’s innovative lens ensures edge-to-edge image clarity without any pixel loss. It is equipped with an advanced intelligent video analytics engine for the real-time detection and classification of people and vehicles.

Additional features include Star-Light Plus™ technology for capturing colors in near-total darkness, ensuring quality video in various lighting conditions, along with true Wide Dynamic Range (WDR), Smart IR™ LEDs, and support for simultaneous H.265/H.264/MJPEG compression formats. The IP67-rated, vandal- and weather-resistant bullet housing is designed for both indoor and outdoor installation. Its distinct focal length makes it ideal for narrow corridor settings, delivering sharp images at distances as close as 19.5 to 23.5 inches from the camera.

Camera
Night Vision Distance100'
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP67
NDAA CompliantYes
TAA CompliantYes

Display & Graphics
Color SupportedColor
Maximum Video Resolution1920 x 1080

Environmental Conditions
Maximum Operating Temperature122°F (50°C)
Minimum Operating Temperature-4°F (-20°C)
Operating Humidity90%

Exposure
Longest Shutter Speed1/15 Second
Minimum Illumination0.3 lux
Shortest Shutter Speed1/32000 Second

General Information
Brand NameDigital Watchdog
ManufacturerDigital Watchdog
Manufacturer Part NumberDWC-MBW8WI2TW
Product LineMEGApix
Product ModelDWC-MBW8WI2TW
Product Name8MP Ultra-Wide View Single-Sensor IP Bullet Camera
Product SeriesMBW8
Product TypeNetwork Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length2.3 mm
Lens IncludedYes
Maximum Focal Length2.30 mm

Miscellaneous
Environmental CertificationRoHS
Environmentally FriendlyYes
Features3D Digital Noise Reduction, Alarm Triggering, Audio Compression, Auto Gain Control, Automatic White Balance, Built-in IR LED, Cross Line Detection, Day/Night, Digital Noise Reduction, Enter/Exit Detector, HTTPS Encryption, Motion Detection, Removable IR Cut-off Filter, SD Card Local Storage, Tamper Detection, Wide Dynamic Range
Indoor/OutdoorIndoor, Outdoor

Network & Communication
Remote ManagementYes

Others
ADI Part Number Replaces6K-PB6M4T
Model Number ReplacesDWC-PB6M4T

Physical Characteristics
ColorWhite
Color FamilyWhite
DurabilityDustproof, Vandal Resistant, Waterproof, Weather Resistant
Form FactorBullet
Height2.8"
Product ColorWhite
Weight (Approximate)2.14 lb
Width8.7"

Power Description
Input Voltage12V DC

Product Information
Mount TypeJunction Box Mount, Pole Mount

Storage
Recording FormatsFull HD
Storage TypeMemory Card

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution8MP
Field of ViewH:175°/V:80°
HD RecordingYes
Lens TypeFixed
Maximum Aperturef/2.8
Maximum Frame Rate30 fps
Minimum Focal Length2.3 mm
Night VisionYes
Night Vision TypeInfrared

Warranty
Limited Warranty5 Years
