Description

**The Stylish Windstorm-Rated, Surface-Mounted Electric Strike Solution**

The 9600 Series is a premier windstorm-rated, surface-mounted electric strike engineered to work seamlessly with rim exit devices featuring a 3/4″ throw Pullman latchbolt. Encased entirely within a robust 3/4″ thick stainless-steel housing, this innovative access control solution eliminates the need for frame cutting during installation. Simply position the electric strike on the surface of the frame, align it with the exit latchbolt, and secure it in place. With the base now independent from the cover, adjustments are more streamlined than ever. This electric strike offers field-selectable options for fail-secure or fail-safe operation and is compatible with 12 or 24 VDC power supplies.

The 9600 Series stands out as the only surface-mounted electric strike designed with the capability to withstand the severe conditions outlined in ANSI Windstorm testing, delivering unmatched strength and durability in the security industry.

General Information
Brand NameHES by ASSA ABLOY
ManufacturerASSA ABLOY
Manufacturer Part Number9600-613E

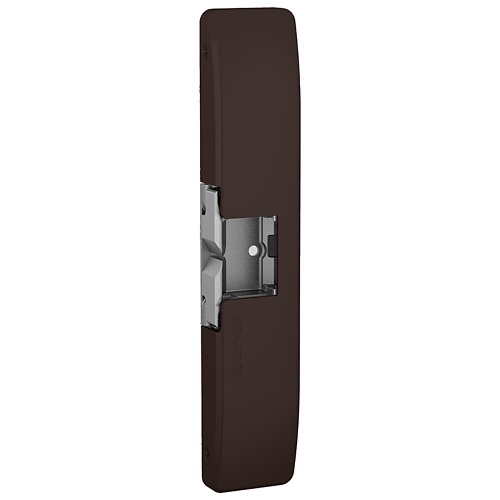

Product Name9600 Electric Strike
Product Series9600
Product TypeElectric Strike

Miscellaneous
Additional InformationCountry of origin: United States. Country of origin is subject to change.
Certifications & Standards UL listed to ANSI 250.13-2003 UL 1034 Florida Building Code Approved (FL#14307) UL 294 ANSI/BHMA A156.31 Grade 1
Country of OriginUS
Environmental CertificationRoHS
Environmentally FriendlyYes
FeaturesHorizontal Adjustment, Internally Mounted Solenoid, Latchbolt Monitor, Surface Mount
Indoor/OutdoorOutdoor

Physical Characteristics
Application/UsageOutdoor
ColorBlack
Color FamilyBrown
Depth0.75"
Faceplate Depth0.75"
Faceplate Height9"
Faceplate Width1.75"
Height9"
MaterialStainless Steel
Product ColorDark Oxidized Satin Bronze
Product MaterialStainless Steel
Strike Depth0.75"
Strike Height9"
Strike Width1.75"
Width1.75"

Power Description
Input Current250 mA, 450 mA
Input Voltage12V DC, 24V DC
Power SourceAC

Technical Information
Compatible Door Frame TypeMetal, Wood
Compatible Door Lock TypeRim Exit
Door HandlingNon Handed
Duty Cycle1000000
Holding Strength120 lb
Security ConfigurationFail Safe, Fail Secure

Warranty
Limited Warranty5 Year
