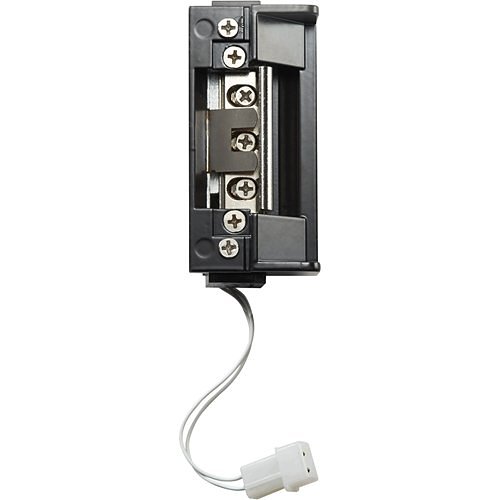

Description
### Features
**Core Features**
– Compatible with 5/8″ and 3/4″ throw cylindrical locksets
– Equipped with a Latch Bolt Monitor and an integrated buzzer
– Strike depth of 1-1/2″
– User-selectable for Fail Secure or Fail Safe configurations
– Universal non-handed design for straightforward installation
– Adjustable keeper for flexibility
– Includes a mounting kit with two 4-7/8″ stainless steel faceplates (one with a round corner and another with a square corner)
– Supports preload up to 70 lbs
– Built-in buzzer, activates when receiving voltage
**Additional Options**
– STR000047-15/16″ round corner faceplate available as a separate option
### Specifications
**Certifications & Listings:**
– BHMA Grade 2 certified
**Holding Strength:**
– Static strength capacity: 1000 lbs
– Dynamic strength capacity: 70 ft lbs
**Electrical Characteristics:**
– Dual voltage operation with 12/24 VAC/VDC, continuous duty on DC
– Current consumption: 1 mA at 12 VDC/VAC, 70 mA at 24 VDC/VAC
– Strike includes SPDT dry contact monitoring
