Description
The ultra-compact electric strike is designed with a small body, making it ideal for retrofit applications with size constraints, as there is no need to cut out the dust box during installation.

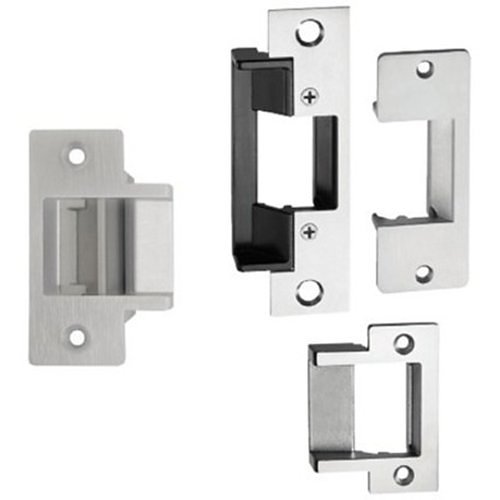

Includes three faceplates suitable for both metal and wood door frames.
This adjustable electric strike combines innovation and value in a compact design, with horizontal adjustability that eliminates the need to cut out the dust box, making it perfect for retrofit purposes.
Features
Standard Features
- Compatible with 5/8″ cylindrical locksets
- Strike depth: 1-3/16″
- Available exclusively in a fail-secure configuration
- Non-handed design for seamless installation
- Compact body design eliminates the need for dust box removal
Options
- AES-30012SB, AES-30024SB strike bodies available separately
- Spacer and keeper shims for horizontal adjustment available in KIT option
- Mounting Kit with assorted faceplates available exclusively in KIT options
Specifications
Certifications & Listings: BHMA Grade 2
Holding Force:
- Static Strength: 1000 lbs
- Dynamic Strength: 50 ft lbs
Endurance: UL tested to 250,000 cycles
Electrical:
- Available in either 12 or 24 VAC or VDC
- Current draw: 200mA at 12 VAC/VDC, 100 mA at 24 VAC/VDC
