Description
Supports a 3/4” (19mm) latch projection, compatible with most frame configurations thanks to various faceplate options. Features an insertion depth of 1-1/2” (38mm).

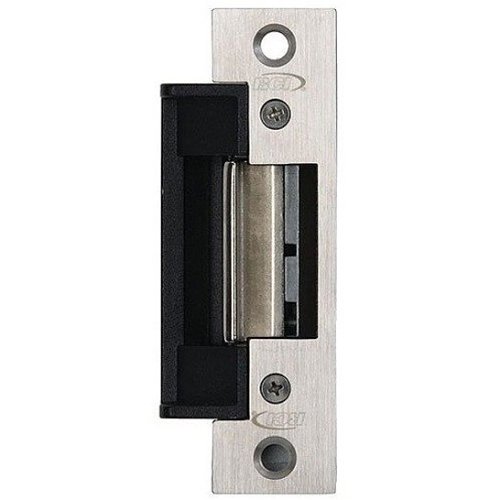

RCI F411489 4 Series Centerline Strike, Fail Secure, 1-1/4″ x 4-7/8″, ANSI Radius Corner
In Stock
Special Order
$347.70
- Supports a latch projection of 3/4" (19 mm)
- Compatible with a cut-out depth of 1-1/2" (38 mm), suitable for various door frame materials
- Designed for door thicknesses ranging from 1-3/8" to 2-3/8" (35 mm to 60 mm)
- Includes standard mounting tabs and fasteners for easy installation
- Non-handed design for versatile application
- Comes with a trim plate to cover uneven frame cutouts
- Operates on 200mA, compatible with 11-16VAC, 12VAC/VDC, 24VAC/VDC (At 12VDC)
- Withstands up to 1,500lbf static force and 70ft-lb dynamic force (Fire-rated models handle up to 1,500lbf static; non-fire-rated 04 & 14 faceplates up to 1,000lbf; 05, 07, 08 & 19 faceplates up to 500lbf)
- Durable design rated for 500,000 cycles on fire-rated models and 250,000 cycles on others
- Available in both Fail-Secure and Fail-Safe configurations
| General Information | |
| Brand Name | RCI by dormakaba |
| Manufacturer | dormakaba Holding |
| Manufacturer Part Number | F411489 |
| Product Name | 4 Series Centerline |
| Product Series | 4 |
| Product Type | Electric Strike |
| Miscellaneous | |
| Features | Heavy Duty |
| Package Contents | 4 Series Centerline Standard Mounting Tabs Fasteners Trim plate |
| Physical Characteristics | |
| Application/Usage | Commercial, Door, Educational Facilities, Healthcare, Industrial, Office Complex, Retail Store |
| Power Description | |
| Input Current | 200 mA |
| Input Voltage | 12V DC |
| Product Information | |
| Strength Type | Heavy Duty |
| Technical Information | |
| Compatible Door Lock Type | Latch Lock |
| Door Handling | Non Handed |
| Duty Cycle | 500000 |
| Electric Strike Assembly | Body with Faceplate |
| Holding Strength | 1500 lb |
| Security Configuration | Fail Secure |
| Warranty | |
| Limited Warranty | 3 Year |
