Brand: RCI by dormakaba

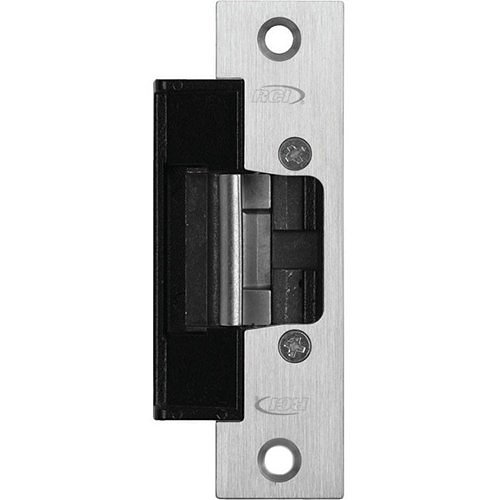

RCI L6514 6 Series Centerline Electric Strike, Low Profile, ANSI Square Corners, Brushed Stainless Steel

In Stock

$147.59

The standard profile supports latch projections of 3/4" (19 mm), while the low-profile version accommodates 1/2" (12.7 mm) or 5/8" (16 mm) latch projections, enhancing door security hardware versatility.
Offers a 1/4" (6.4 mm) horizontal adjustment to ensure precise alignment in access control installations.
Equipped with plug-in wire connectors for streamlined security system setup.
Includes a trim plate to conceal any irregularities in the door frame cut-out, providing a seamless finish to security applications.
Fully non-handed design for flexible installation in various security configurations.
Operates at 375mA with field-selectable 12/24VDC and 12-24VAC compatibility for adaptable power integration in security environments.
Delivers a robust 1,500lbf static strength and 70ft-lb dynamic resistance (applicable to 04 & 14 faceplates), while maintaining Grade 2 performance with 1,000lbf static strength for 05, 07 & 08 faceplates—ideal for demanding security settings.
Rated for 500,000 cycles for faceplates 04 & 14, reflecting durability in high-use security apparatus as part of Grade 2 standards for faceplates 05, 07, & 08.
Features field-selectable fail-secure and fail-safe modes for optimal security system adaptability.
Available models with optional latch and keeper monitor provide enhanced monitoring capabilities for advanced security solutions.

SKU: L6514 X32D Categories: Access Control, Electric Strikes, Locking Devices Brand: RCI by dormakaba

Description

The 6 Series centerline electric strikes come in both standard and low-profile designs to suit a variety of latch projections. This robust series incorporates highly demanded features. Key attributes include a multi-voltage single solenoid, tool-free selectable lock mode, horizontal adjustability, and plug-in wire connectors. The ¼” horizontal adjustment feature streamlines installations, making them quicker and more efficient. Additionally, the versatile design of the 6 Series electric strikes reduces the pressure on installers’ strike inventory, as they can meet diverse installation needs.

General Information
Brand Name	RCI by dormakaba
Manufacturer	dormakaba Holding
Manufacturer Part Number	L6514 X32D
Product Model	L6514
Product Name	6 L6514 Electric Strike
Product Series	6
Product Type	Electric Strike

Miscellaneous
Features	Keeper Monitor, Latch Projection, Latchbolt Monitor

Physical Characteristics
Application/Usage	Commercial, Educational Facilities, Healthcare, Industrial, Office Complex, Retail Store
Color	Silver
Faceplate Height	4.87"
Faceplate Width	1.25"
Product Material	Stainless Steel

Power Description
Input Current	375 mA
Input Voltage	12V DC, 24V AC, 24V DC

Product Information
Strength Type	Heavy Duty

Technical Information
Door Handling	Non Handed
Duty Cycle	500000
Electric Strike Assembly	Body with Faceplate
Holding Strength	1500 lb
Security Configuration	Fail Safe, Fail Secure

Warranty
Limited Warranty	3 Year
