Description

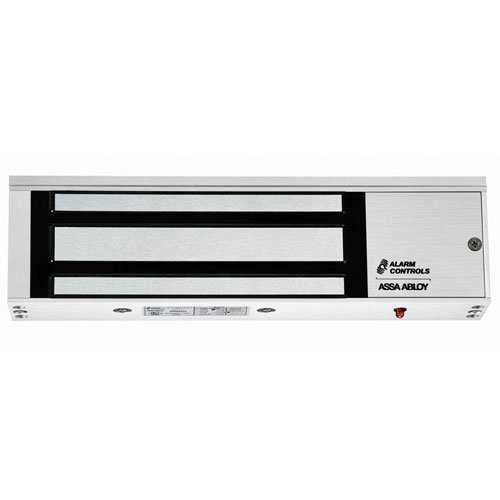

This single electromagnetic lock, featuring a robust 1200 lbs holding force, can be effortlessly installed on any access control system without the need for specialized tools. It’s perfect for controlling high-traffic interior spaces. Optional enhancements include LED indicators, bond sensors, and door status signaling.
**Key Features**
– 1200S Standard model
– 1200L Magnetic lock with LED status indicator
– 1200LB Magnetic lock with LED status, bond sensor, and door status sensor
– Integrated arc suppression
– Instantaneous release with no hysteresis
– Equipped with self-drilling TEC screws
– Corrosion-resistant plating on non-aluminum components
– Comes with an E-Z mount header bracket and installation template
– Compatible with any access control system
– Standard clear anodized (US28) finish
– Backed by a limited lifetime warranty
**Available Options**
– DURO Duranodic finish (US 40) available upon specification
– Dress covers in polished chrome and brass available; refer to “Magnetic Lock Accessories” for additional options.
**Specifications**
Certification and Listings:
– UL 294 listed
– UL 10C fire-rated
– Conforms to CAN/ULC-S104 for fire doors
– UL 864 listed
– CAN/ULC-S527 listed
Holding Force: 1200 lbs
Dimensions:
– Magnet size: 10-1/2″ L x 2-7/8″ H x 1-1/2″ W
– Armature size: 7-1/4″ L x 2-3/8″ H x 5/8″ W
Electrical:
– Operates at 12 or 24 VDC, field selectable
– Current Draw: 505 mA at 12 VDC, 260 mA at 24 VDC
– 1200LB bond sensor equipped with SPDT 3A relay contacts
Operating Temperature: +14 to +131°F [-10 to +55°C]
