Description

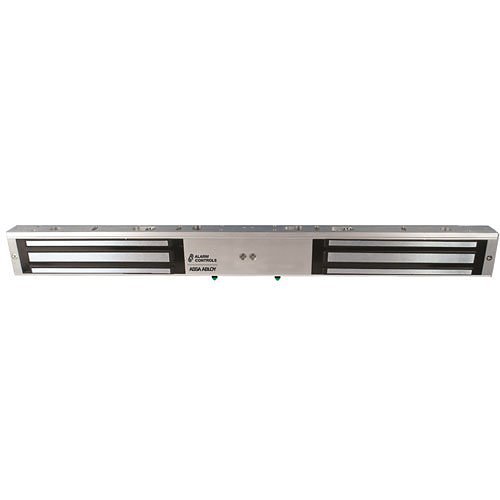

Enhance your access control solutions with double magnetic locks offering 600 lbs of holding force per door—ideal for managing dual-door setups. These magnetic locks are bracket-mounted for straightforward installation and integrate with any access control system. They feature LED indicators, bond sensors, and door status signaling to ensure secure and reliable door sealing.
Features
Standard Features
- 600D Standard double magnetic lock
- 600DLB Model with LED indicators, bond sensors, and door status sensors
- Integrated arc suppression for enhanced performance
- Instantaneous release with no hysteresis
- Includes self-drilling TEC screws
- Corrosion-resistant non-aluminum components
- Comes with an E-Z mount header bracket and template for easy installation, no special tools required
- Compatible with any access control system
- Standard clear anodized (US28) finish
- Backed by a limited lifetime warranty
Options
- DURO Duranodic finish (US 40) available upon request
- Dress covers available in polished chrome and brass. Explore “Magnetic Lock Accessories” for more options.
Specifications
Certifications & Listings
- UL 294 certified
- UL 10C fire-rated
- Compliant with CAN/ULC-S104 fire door standards
- ULC-S527 listed
- UL-864 certified
Holding Force: 600 lbs per magnet
Dimensions
- Magnet dimensions: 19-3/4″ L x 1-7/8″ H x 1″ W
- Armature dimensions: 7-1/4″L x 1-1/2″ H x 5/8″ W
Electrical Specifications
- Field-selectable voltage: 12 or 24 VDC
- Current draw per magnet: 505 mA at 12 VDC, 260 mA at 24 VDC
- 600DLB model includes SPDT 3A relay contacts, per magnet
Operational Temperature: +14 to +131°F [-10 to +55°C]
