Description

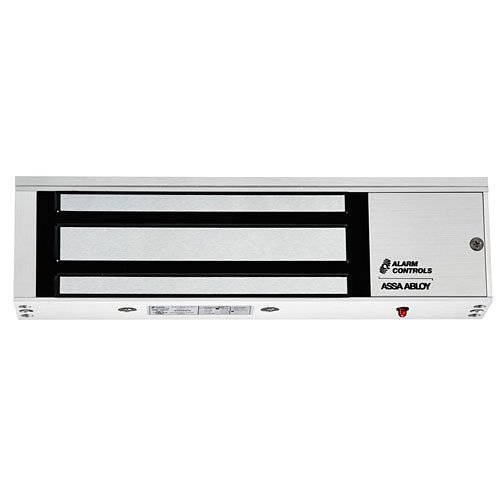

This bracket-mounted, single electromagnetic lock offers a robust holding force of 600 pounds and is designed for seamless integration with any access control system, making it ideal for high-traffic interior areas requiring effective access management. It comes with optional features like an LED indicator, bond sensor, and door status signaling.
### Key Features
– **600LB Electromagnetic Lock:** Features a red LED status indicator, bond sensor, and door status sensor.
– **Durability and Reliability:** Includes built-in arc suppression and instant release mechanisms with no hysteresis; non-aluminum components are corrosion-resistant.
– **Easy Installation:** Provided with an E-Z mount header bracket and template, requiring no special tools.
– **Versatile Compatibility:** Works with any access control system.
– **Finish and Warranty:** Comes in a clear anodized (US28) finish with a limited lifetime warranty.
### Optional Enhancements
– **Finish Options:** Available in DURO Duranodic finish (US 40) upon request.
– **Aesthetic Covers:** Dress covers in polished chrome and brass are available; check “Magnetic Lock Accessories” for more.
### Technical Specifications
#### Certifications & Listings
– UL 294 listed
– UL 10C fire rated
– CAN/ULC-S104 fire door conformant
– UL 864 listed
– CAN/ULC-S527 listed
#### Electrical Performance
– Operates on 12 or 24 VDC, field selectable
– Power consumption: 505 mA at 12 VDC, 260 mA at 24 VDC
– 600LB bond sensor equipped with SPDT 3A relay contacts
#### Physical Dimensions
– Magnet size: 9-7/8″ L x 1-11/16″ H x 1″ W
– Armature size: 7-1/4″ L x 1-1/2″ H x 1/2″ W
#### Operating Conditions
– Temperature range: +14 to +131°F [-10 to +55°C]
