Description

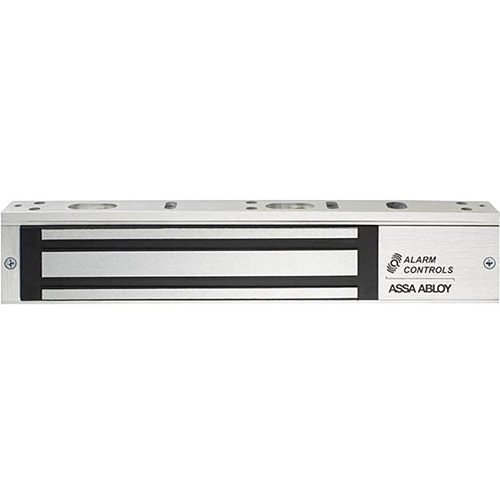

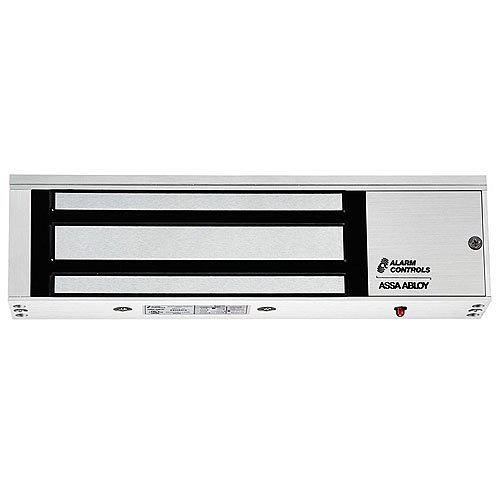

This bracket-mounted single magnetic lock offers a robust 600 lbs holding force, seamlessly integrating with any access control system for easy installation without the need for specialized tools. Designed for high-traffic interior applications, it provides effective traffic management. Users can opt for advanced features such as LED indicators, bond sensors, and door status signaling.
### Key Features
– **600S Model**: Reliable standard model
– **Arc Suppression**: Built-in for enhanced performance
– **Instant Release**: Ensures no hysteresis
– **Self-drilling TEC Screws**: Simplifies installation
– **Corrosion Resistance**: Non-aluminum components are plated
– **E-Z Mount System**: Comes with a header bracket and template for hassle-free installation
– **Access Control Compatibility**: Works with all access control systems
– **Finish**: Standard clear anodized (US28)
– **Warranty**: Comes with a limited lifetime warranty
### Available Options
– **Finish Options**: DURO Duranodic (US 40) available on request
– **Dress Covers**: Available in polished chrome and brass, refer to “Magnetic Lock Accessories” for selection
### Specifications
– **Certifications & Listings**: UL 294, UL 10C fire rated, CAN/ULC-S104, UL 864, CAN/ULC-S527
– **Holding Force**: 600 lbs
– **Dimensions**:
– Magnet: 9-7/8″ L x 1-11/16″ H x 1″ W
– Armature: 7-1/4″ L x 1-1/2″ H x 1/2″ W
– **Electrical**:
– Voltage: 12 or 24 VDC, field selectable
– Current Draw: 505 mA at 12 VDC, 260 mA at 24 VDC
– Bond Sensor: 600LB with SPDT 3A relay contacts
– **Operating Temperature**: +14 to +131°F [-10 to +55°C]
