Brand: Camden Door Controls

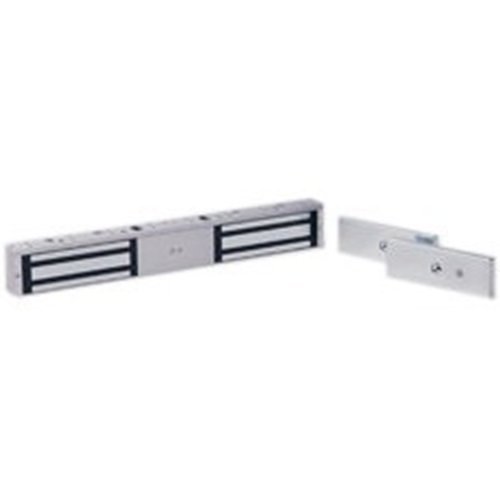

Camden CX-92S-12TDS 1200 lb Surface Mount Double Door Magnetic Lock with Adjustable Timer and Door Switch

Name: Camden CX-92S-12TDS 1200 lb Surface Mount Double Door Magnetic Lock with Adjustable Timer and Door Switch
Brand: Camden Door Controls
SKU: CX-92S-12TDS
Availability: InStock

In Stock

Special Order

$360.67

The 1200 lbs variant is UL and ULC certified
Designed with weather and vandal-resistant construction, validated through extensive installations
Seamlessly integrates with all access control and egress systems
Offers field-selectable 12/24V DC operation
Incorporates onboard MOV power surge protection to safeguard the magnetic lock

SKU: CX-92S-12TDS Categories: Access Control, Locking Devices, Magnetic Locks Brand: Camden Door Controls

Description

The Camden CX-92 Series double door magnetic locks deliver exceptional performance and value in the access control industry. Available in 600lb. and 1200lb. models, these locks feature an optional built-in ‘TDS’ module, which offers an adjustable timer, lock sensor, door status switch, relay, and LED indicator.

General Information
Brand Name	Camden Door Controls
Manufacturer	Camden Door Controls
Manufacturer Part Number	CX92S12TDS
Product Line	eXACT
Product Model	CX-92S-12TDS
Product Name	1200 Lbs. Surface Mount Double Doors
Product Series	CX-92
Product Type	Locking

Miscellaneous
Compatibility	Access/Egress Systems
Features	Adjustable Timer, Relock Time Delay (RTD)

Physical Characteristics
Color	Silver
Form Factor	Surface Mount
Lock Depth	1.89"
Lock Height	2.87"
Lock Width	19.69"
Material	Aluminum, Stainless
Product Material	Aluminum, Stainless

Power Description
Input Current	250 mA, 500 mA
Input Voltage	12V DC, 24V DC

Product Information
Finishing	Anodized Aluminum
Holding Force	1200 lb

Technical Information
Door Supported	Double Door

Warranty
Limited Warranty	Lifetime
