Description

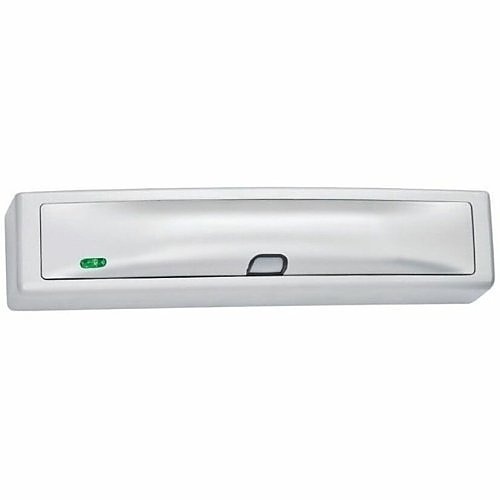

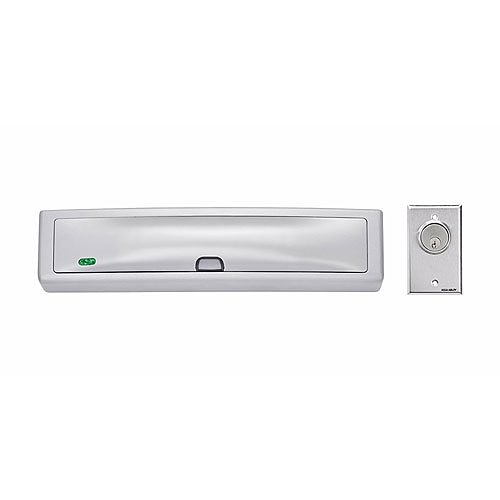

This highly configurable Magnalock features a robust 1,200 lbs holding force and bracket mounting designed for delayed egress applications. It exemplifies the latest advancements in delayed egress technology, offering a powerful yet easy-to-install solution. Building upon the pioneering innovations of the Securitron EcoMag Series, the DEM680E serves as a direct replacement for previous models in environments where door opening delays are crucial. The standard model complies with HUGS regulations, with additional models available to meet specific code requirements. Ideal for interior and perimeter exits on single, out-swinging doors, the DEM680E is an essential asset in any access control strategy.

General Information
Brand NameSecuritron by ASSA ABLOY
ManufacturerASSA ABLOY
Manufacturer Part NumberDEM680E-600
Product LineMagnalock
Product ModelDEM680E
Product NameDEM680E EcoMag Delayed Egress Magnalock
Product SeriesM680E
Product TypeMagnetic Lock

Miscellaneous
FeaturesAdjustable Mounting Bracket, Door Position Switch (DPS), Dual Voltage, EcoMag, Egress Mode Status, Magnetic Bond Sensor (MBS), No Residual Magnetism, Selectable Nuisance Delay, Status LED

Physical Characteristics
Application/UsageIndoor, Outswing Door
ColorWhite
Form FactorBracket Mount
Lock Depth2.5"
Lock Height3"
Lock Width1.5"

Power Description
Input Current315 mA, 575 mA
Input Voltage12V DC, 24V DC

Product Information
Holding Force1200 lb

Technical Information
Door SupportedSingle Door
Magnet Depth2.50"
Magnet Height3.13"

Warranty
Limited WarrantyLifetime
