Description

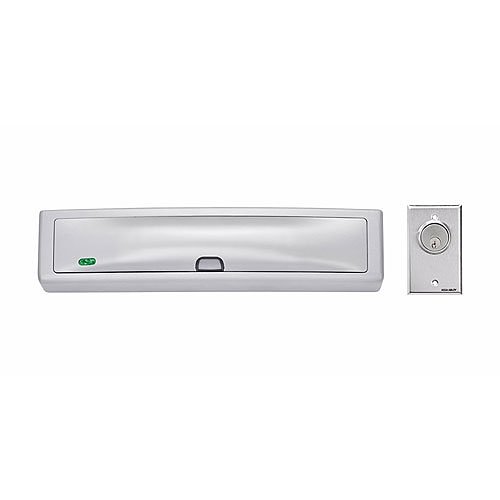

Highly adaptable with a robust 1,200 lbs holding strength, this bracket-mounted, delayed egress Magnalock is perfect for a range of security applications.

Featuring superior configurability and ease of installation, it’s equipped with the latest advancements in delayed egress technology.

Modeled on the renowned Securitron EcoMag Series, the DEM680E serves as a direct upgrade for the iMXDA. Ideal for scenarios requiring controlled door opening delays, the DEM680E standard model complies with HUGS and offers code-compliant variants. Suitable for indoor and perimeter exit use on single, out-swinging doors.

General Information
Brand NameSecuritron by ASSA ABLOY
ManufacturerASSA ABLOY
Manufacturer Part NumberDEM680E-CH-628
Product LineMagnalock
Product ModelDEM680E
Product NameDEM680E EcoMag Delayed Egress Magnalock
Product SeriesM680E
Product TypeMagnetic Lock

Miscellaneous
FeaturesAdjustable Mounting Bracket, Door Position Switch (DPS), Dual Voltage, EcoMag, Egress Mode Status, Magnetic Bond Sensor (MBS), No Residual Magnetism, Selectable Nuisance Delay, Status LED

Physical Characteristics
Application/UsageIndoor, Outswing Door
ColorSilver
Form FactorBracket Mount
Lock Depth2.5"
Lock Height3"
Lock Width1.5"

Power Description
Input Current315 mA, 575 mA
Input Voltage12V DC, 24V DC

Product Information
FinishingClear Satin Aluminum
Holding Force1200 lb

Technical Information
Door SupportedSingle Door
Magnet Depth2.50"
Magnet Height3.13"

Warranty
Limited WarrantyLifetime
