Description

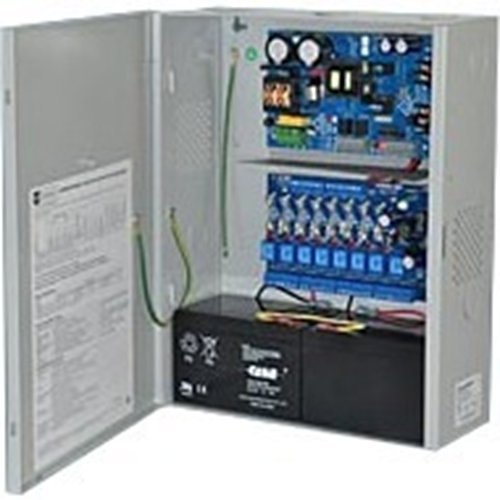

The eFlow6NA8 power management solution is designed to distribute and switch power within access control systems and their components. This system efficiently converts a 120VAC 60Hz input into eight independently controlled 12VDC or 24VDC fuse-protected outputs, delivering a total of 6A continuous supply current. The outputs can be configured to function as Form “C” dry contacts and are triggered by an open collector sink or normally open (NO) dry trigger inputs from access control devices, such as card readers, keypads, push buttons, and PIR sensors.
This unit is adept at routing power to a wide array of access control devices, including electromagnetic locks, electric strikes, and magnetic door holders. It supports both Fail-Safe and Fail-Secure operating modes to ensure flexibility and reliability in various security scenarios. Additionally, the Fire Alarm Control Panel (FACP) interface is designed to facilitate emergency egress and alarm monitoring, with the ability to trigger auxiliary devices as needed. The system also incorporates a fire alarm disconnect feature that can be individually configured for any or all of the eight outputs, enhancing safety and control within access control environments.
