Description

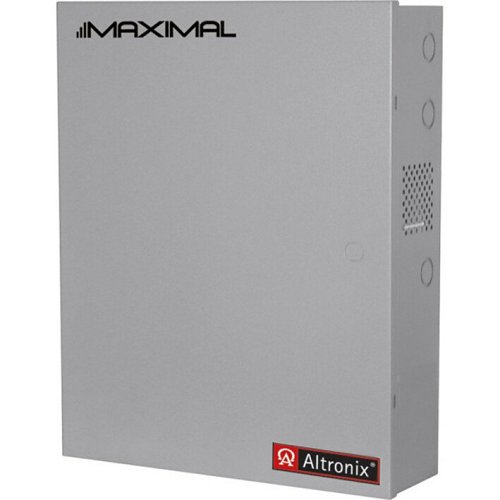

Maximal33V is a versatile power distribution and switching solution designed for access control systems and their associated components. It transforms a 220VAC input (operating range: 198VAC – 256VAC) at 50/60Hz into sixteen (16) independently managed, fuse-protected outputs available in either 12VDC or 24VDC. These outputs can be configured as Fail-Safe or Fail-Secure and can be adapted to function as dry Form “C” contacts. They are activated via an open collector sink or a normally open (NO) dry trigger input, compatible with various access control interfaces such as keypads, push buttons, and REX PIR sensors. Maximal33V efficiently distributes power to a wide range of access control devices, including magnetic locks, electric strikes, and magnetic door holders. Additionally, the Fire Alarm Control Panel (FACP) interface facilitates emergency egress and alarm monitoring while also serving to trigger other auxiliary devices. The fire alarm disconnect feature can be individually configured for each of the sixteen (16) outputs.
