Description

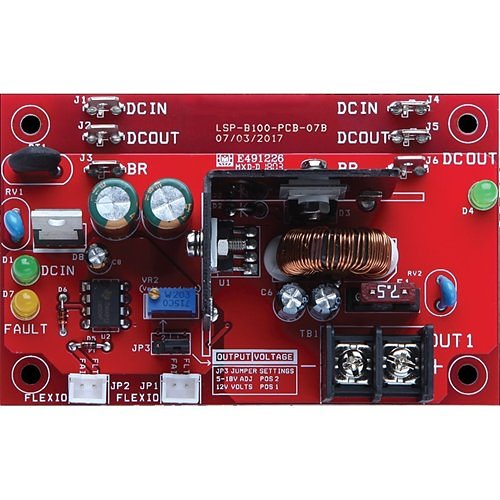

The Securitron AQL B100 is a versatile terminal block output designed for Class 2 power-limited systems, offering a jumper-selectable output of either a fixed 12 VDC or an adjustable range of 5-18 VDC with a maximum current of 4 Amps. Multiple units can be integrated into a system to achieve a wide array of voltage configurations.
The primary power source for the Securitron B100 is derived from an AQL power supply, efficiently stepping down the voltage to a user-defined range, commonly set at 12 VDC.
Product Features
- Accommodates unique voltage requirements for powering modems, routers, and other IT or related devices (e.g., 5 V, 9 V, 15 V)
- Features snap-in style mounting standoffs with fast-on connect cables for straightforward field installation
- Eliminates the necessity for a 12 V battery in dual voltage access power systems
- Compact size enables dual voltage functionality within a smaller enclosure
- Jumper selectable output voltage: fixed 12 VDC or adjustable from 5 to 18 VDC
- Supports 4 Amps current at any chosen voltage
- Includes overload protection mechanisms
- Equipped with short circuit protection
- Features over-temperature protection
- Provides fault reporting to the host power supply in cases of abnormal operation, voltage loss, or overcurrent
- Visual indicators for DC input/output and fault conditions
- Input and output LEDs signal voltage levels by color (Green for 15 V)
- Offers a cost-effective secondary 12 V output option for any 24 VDC system
- Constructed with a fiberglass PCB and high-efficiency circuit to minimize heat, enhancing service life and reducing MTBF
- Backed by the MagnaCare lifetime replacement warranty, which offers no-fault, no-questions-asked exchanges
