Description

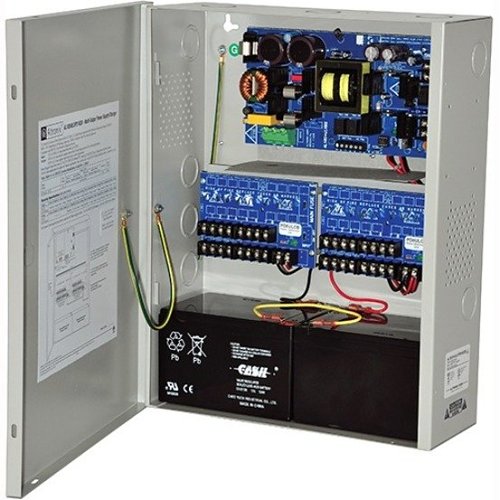

The AL1024ULXPD16CB is a versatile power supply and charger ideal for safety and security applications, offering multiple outputs and converting a 115VAC, 60Hz input into sixteen (16) 24VDC Class 2 power-limited outputs. It features:
– **Input:** Operates on a 115VAC, 60Hz supply, drawing 4.2A, with a 3.5A/250V rated input fuse.
– **Output:** Provides a 24VDC output, delivering up to 10A continuous supply current for access control systems and 8A for fire alarm systems. Includes sixteen (16) PTC-protected, power-limited outputs, each rated at 2.5A, which are auto-resettable. Outputs are filtered and electronically regulated, with built-in short circuit and thermal overload protection.
– **Battery Backup:** Integrated charger for sealed lead acid or gel type batteries, with automatic switchover to standby battery during AC failures.
– **Supervision:** Features AC fail supervision with form “C” contacts, with notification trigger settings of either 30 seconds or 6 hours. Also includes low battery and battery presence supervision via form “C” contacts.
– **Visual Indicators:** Equipped with LED indicators for AC input and DC output status.
– **Temperature:** Operates between 0 to 49°C (32 to 120°F) and can be stored between -20 to 70°C (-4 to 158°F), with a relative humidity tolerance of 85% ± 5%.
– **Power Requirements:** The system requires 483VA and generates approximately 123 BTU/Hr.
This power solution is ideal for professionals seeking reliable power management and backup for various access control and fire alarm applications in the security industry.
