Brand: Altronix

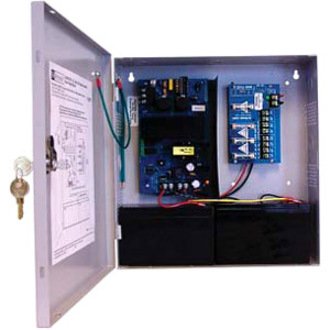

Altronix AL400ULPD4 Power Supply Charger, Fused Outputs, 12/24VDC at 4A, BC300 Enclosure

In Stock

$226.06

Available with configurations of 1, 4, 8, or 16 outputs.
Outputs are protected by either fuses or PTC technology.
Monitoring capabilities for AC power failure, battery failure, and battery presence.
Integrated charger compatible with sealed lead acid and gel cell batteries.
Automatic transition to backup battery power during AC power interruptions, ensuring no voltage drop.

SKU: AL400ULPD4 Categories: Access Control, Power Products, Power Supplies Brand: Altronix

Description

The Altronix AL400ULX series power supply/chargers efficiently transform a 115VAC, 60Hz input into multiple fused outputs, available in configurations of four (4), eight (8), or sixteen (16) outputs that feature either fuse or PTC protection. These outputs are configurable for 12VDC with a maximum total output of 4A, or for 24VDC with a maximum total output of 3A.

Certifications
NDAA Compliant	Yes

General Information
Brand Name	Altronix
Manufacturer	Altronix Corporation
Manufacturer Part Number	AL400ULPD4
Product Model	AL400ULPD4
Product Name	AL400ULPD4 Proprietary Power Supply
Product Type	Proprietary Power Supply

Miscellaneous
Environmental Certification	RoHS
Environmentally Friendly	Yes

Others
ADI Part Number Replaces	AX-300ULPD4
Model Number Replaces	AL300ULPD4

Physical Characteristics
Depth	3.3"
Form Factor	Wall Mount
Height	13.5"
Weight (Approximate)	7.40 lb
Width	13"

Power Description
Input Voltage	110V AC
Output Current	4A

Technical Information
Output Voltage	12V DC, 24V DC

Warranty
Limited Warranty	Lifetime
