Brand: Altronix

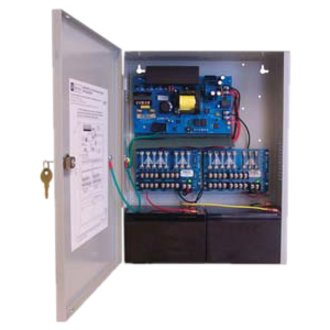

Altronix AL600ULXPD16 Power Supply Charger, 16 Fused Outputs, 12/24VDC at 6A, BC400 Enclosure

In Stock

$335.71

Sixteen (16) fuse-protected power outputs.
Advanced supervision for power loss, battery failure, and battery presence.
Seamless transition to backup battery power.
Short circuit and overload protection included.
Options for AC input and DC output.
UL certified for both U.S. and Canada compliance.
Certified by CSFM and MEA.
Lifetime warranty and manufactured in the U.S.A.

SKU: AL600ULXPD16 Categories: Access Control, Power Products, Power Supplies Brand: Altronix

Description

The AL600ULX series power supply and chargers transform a 115VAC, 60Hz input into multiple outputs, available in configurations with single, four (4), eight (8), or sixteen (16) fused or PTC-protected circuits. These outputs are configurable for either 12VDC or 24VDC, supporting a maximum total output of 6A, making them ideal for various applications in power management and distribution systems.

Certifications
NDAA Compliant	Yes

General Information
Brand Name	Altronix
Manufacturer	Altronix Corporation
Manufacturer Part Number	AL600ULXPD16
Product Model	AL600ULXPD16
Product Name	AL600ULXPD16 Proprietary Power Supply
Product Type	Proprietary Power Supply

Miscellaneous
Environmental Certification	RoHS
Environmentally Friendly	Yes

Physical Characteristics
Depth	4.5"
Form Factor	Enclosure, Wall Mount
Height	15.5"
Weight (Approximate)	10.30 lb
Width	12.2"

Power Description
Input Voltage	120V AC
Output Current	6A

Technical Information
Output Voltage	12V DC, 24V DC

Warranty
Limited Warranty	Lifetime
