Brand: Altronix

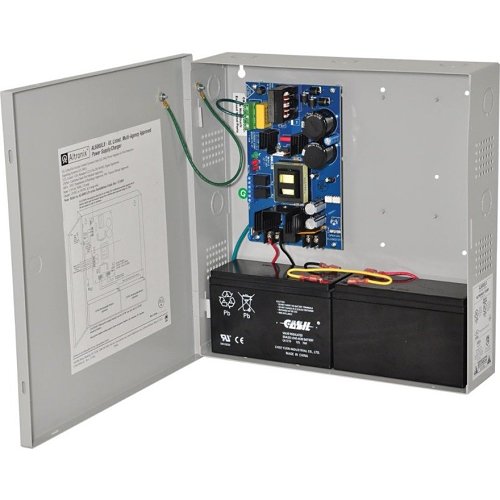

Altronix AL600X220 Power Supply Charger, Single Class Output, 12/24VDC at 6A, 220VAC, BC300 Enclosure

Name: Altronix AL600X220 Power Supply Charger, Single Class Output, 12/24VDC at 6A, 220VAC, BC300 Enclosure
Brand: Altronix
SKU: AL600X220
Availability: InStock

In Stock

Special Order

$281.84

Available configurations include 1, 4, 8, or 16 outputs.
Outputs protected by fused or PTC options.
Comprehensive system supervision.
Features AC failure detection.
Monitors battery failure and confirms battery presence.
Integrated charger compatible with sealed lead acid or gel batteries.
Seamless transition to backup battery power.
Protection against short circuits and overload conditions.
Options for AC input and DC output.
Meets CE European Conformity standards.

SKU: AL600X220 Categories: Access Control, Power Products, Power Supplies Brand: Altronix

Description

The Altronix AL600X220 series power supply/chargers transform a 220VAC input (operating range of 198VAC – 256VAC), 50/60Hz, into configurations offering one, four, eight, or sixteen fuse/PTC protected outputs. These outputs can be adjusted for 12VDC or 24VDC with a maximum capacity of 6A.

Certifications
NDAA Compliant	Yes

General Information
Brand Name	Altronix
Manufacturer	Altronix Corporation
Manufacturer Part Number	AL600X220
Product Model	AL600X220
Product Name	AL600X220 Power Supply
Product Type	Power Supply

Miscellaneous
Environmental Certification	RoHS
Environmentally Friendly	Yes

Physical Characteristics
Depth	3.3"
Form Factor	Enclosure
Height	13.5"
Weight (Approximate)	7.50 lb
Width	13"

Power Description
Input Voltage	230V AC
Output Current	6A

Technical Information
Output Voltage	12V DC, 24V DC

Warranty
Limited Warranty	Lifetime
