Brand: Altronix

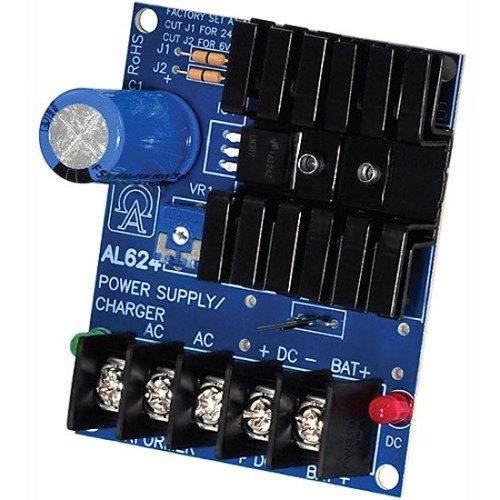

Altronix AL624 Linear Power Supply Charger, Single Class Output, 6/12/24VDC at 1.2A, 16 to 24VAC, Board

In Stock

$26.64

Input: 16V AC to 24V AC, with a power capacity of 20VA to 40VA
DC Output Options: 6V or 12V at 1.2A, or 24V at 0.75A
Output is filtered and electronically regulated for stability
Equipped with protection against short circuits and thermal overload
Integrated charger compatible with sealed lead acid or gel batteries
Automatic transition to standby battery power during AC power failure
Battery protection through PTC (Positive Temperature Coefficient) technology
LED indicators for AC input and DC output status

SKU: AL624 Categories: Access Control, Power Products, Power Supplies Brand: Altronix

Description

The Altronix AL624 power supply/charger unit efficiently converts low voltage AC input into 6VDC, 12VDC, or 24VDC output. This versatile power solution is ideal for applications in access control systems, security infrastructure, and CCTV system accessories that demand supplementary power.

Certifications
NDAA Compliant	Yes

General Information
Brand Name	Altronix
Manufacturer	Altronix Corporation
Manufacturer Part Number	AL624
Packaged Quantity	1
Product Model	AL624
Product Name	AL624 Proprietary Power Supply
Product Type	Proprietary Power Supply

Miscellaneous
Compatibility	Access Control DevicesSecurity DevicesCCTV Systems
Environmental Certification	RoHS
Environmentally Friendly	Yes
Package Contents	AL624 Proprietary Power SupplyBattery Leads

Others
ADI Part Number Replaces	AX-AL612
Model Number Replaces	AL612

Physical Characteristics
Depth	3.5"
Form Factor	Wall Mount
Height	8.5"
Weight (Approximate)	3.20 oz
Width	7.5"

Power Description
Input Voltage	16V AC, 24V AC
Number of +12V Rails	1
Output Current	1.2A

Technical Information
Output Voltage	12V DC, 24V DC, 6V DC

Warranty
Limited Warranty	Lifetime
