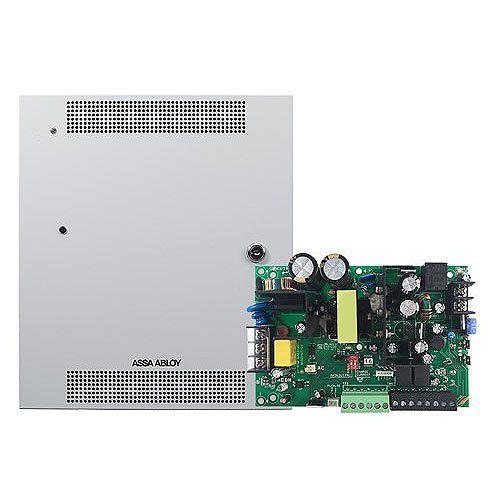

Description
The Securitron AQL4 Series switching power supplies are versatile and highly suited for security and access control applications. They are dual voltage, UL listed, multi-voltage, and network monitoring ready. These power solutions offer field-selectable outputs with a dedicated fast battery charger, providing 4 Amps at 12 VDC or 3 Amps at 24 VDC, expandable to 16 outputs.
**Product Features**
– Low battery cutoff to prevent deep discharge
– Dedicated fast charger to enhance battery longevity
– Enhanced surge immunity for reliable input/output protection
– LockSafe™ technology maintains cooler lock temperatures with a dedicated charging circuit
– OutSmart™ technology offers dual-color LED notifications to prevent incorrect voltage application (Green for 12 V, Blue for 24 V)
– Class 2, power-limited auxiliary output
– Flexible UL Listing compatibility
– Automatic switch to battery power during AC loss
– Expandable to 16 outputs within the standard enclosure
– Multi-voltage compatibility with the Securitron B100 Module
– Integrated Fire Alarm Interface (FAI) for main output control or disconnection on a per-output basis with the R8 output module
– Network-ready with an optional Netlink™ module
– MagnaCare® lifetime replacement warranty with no-fault, no questions asked
**Optional Features**
– Advanced Network Management capabilities
– AC line voltage monitoring
– Remote battery monitoring and testing features
– 1000-event data recording
– Email notifications for fault reporting
