Description

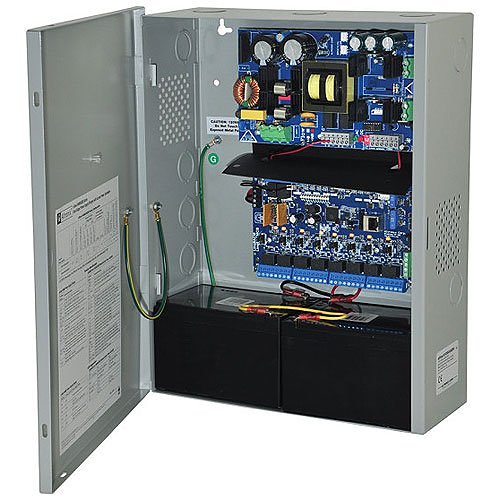

The Altronix eFlow104NKA8DQM power supply efficiently transforms a 120VAC 60Hz input into eight PTC-protected, power-limited outputs, ideal for security and access control applications. Each output is selectable, offering 12VDC or 5VDC at up to 6A, or 24VDC at up to 10A, with a total power capacity of 240W. These outputs cater to various security components, including access control panels, door locks, and auxiliary devices. The outputs can be adapted to provide dry form “C” contacts and are activated via open collector sink, normally open (NO), normally closed (NC) dry trigger inputs, or wet output signals from access control systems, card readers, keypads, push buttons, PIR sensors, and more. The eFlow104NKA8DQM is designed to distribute power to a wide range of access control hardware like Mag Locks, Electric Strikes, and Magnetic Door Holders, supporting both fail-safe and fail-secure modes. The built-in FACP interface facilitates emergency egress and alarm monitoring, with fire alarm disconnects selectable for any or all of the eight outputs. Spade connectors enable daisy-chaining to multiple LINQ8ACM modules, enhancing power distribution across larger installations. Integrated LINQTM Network Power Management provides advanced power monitoring, reporting, and diagnostics control for optimal system management.
