Description

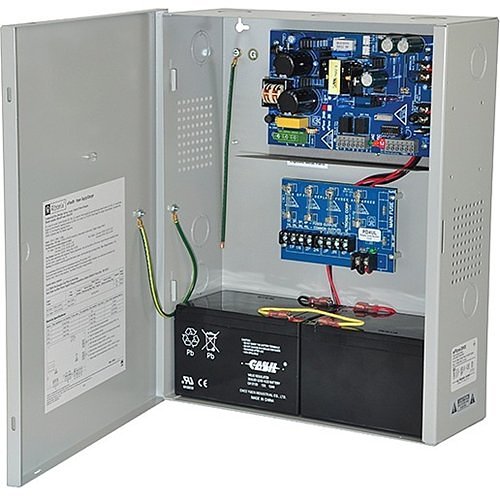

The eFlow3NX4 is a power supply and charger unit that transforms a 120VAC, 60Hz input into four (4) fuse-protected, power-limited outputs available in either 12VDC or 24VDC.
Altronix EFLOW3NX4 eFlow eFlow3N Wall Mount
In Stock
Special Order
$247.27
- Converts standard 120VAC, 60Hz input to reliable DC output
- Equipped with four fuse-protected 12VDC or 24VDC outputs
- Features power-limited outputs for enhanced safety
- Designed for wall mounting to facilitate easy installation
| Certifications | |
| NDAA Compliant | Yes |
| General Information | |
| Brand Name | Altronix |
| Manufacturer | Altronix Corporation |
| Manufacturer Part Number | EFLOW3NX4 |
| Product Line | eFlow |
| Product Model | eFlow3NX4 |
| Product Name | Four (4) Fused Outputs Power Supply/Charger |
| Product Type | Power Supply |
| Miscellaneous | |
| Compatibility | Access Control System Burglar Alarm System Fire Protective Signaling System |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Physical Characteristics | |
| Depth | 4.5" |
| Height | 15.5" |
| Weight (Approximate) | 8.3 lb |
| Width | 12.25" |
| Power Description | |
| Input Voltage | 120V AC |
| Output Current | 2A |
| Technical Information | |
| Output Voltage | 12V DC, 24V DC |
| Warranty | |
| Limited Warranty | Lifetime |
