Description

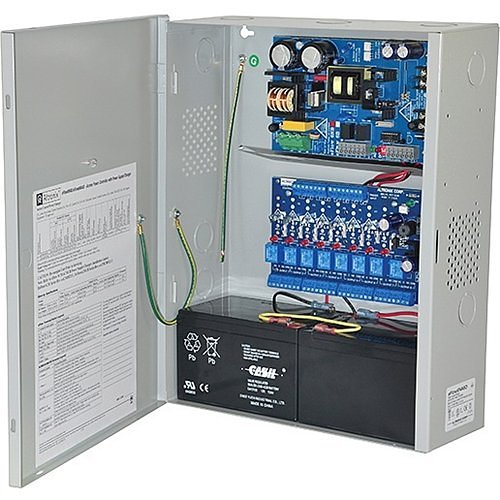

Access Control Power Supply/Charger with 8 PTC Class 2 Relay Outputs, compatible with both 12VDC and 24VDC systems, 6A capacity, Auxiliary Output, 6A Fire Alarm Interface (FAI), housed in a BC400 Enclosure. This unit is designed to distribute and manage power for access control systems and related peripherals. It transforms a 120VAC 60Hz input into eight independently managed PTC-protected outputs, which can be converted to dry form “C” contacts. These outputs are triggered by either an open collector sink or a normally open (NO) dry input from devices like an Access Control System, Card Reader, Keypad, Push Button, or PIR sensor. The unit directs power to various access control hardware devices, including Magnetic Locks, Electric Strikes, and Magnetic Door Holders, and supports both Fail-Safe and Fail-Secure operational modes. The Fire Alarm Control Panel (FACP) Interface supports Emergency Egress and Alarm Monitoring and can be used to trigger auxiliary devices. Each of the eight outputs offers a selectable fire alarm disconnect feature for added safety and customization.
