Description

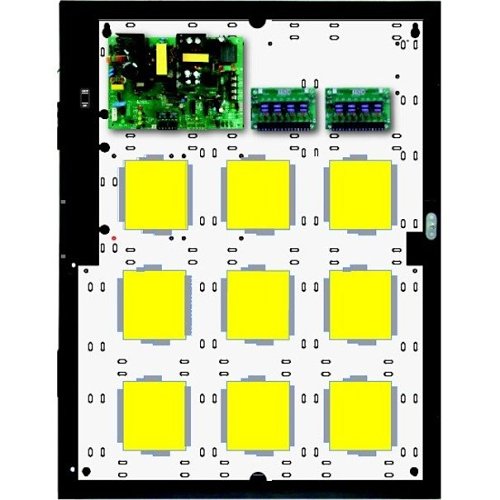

The BCLASS™ Unified Power Systems integrate FlexPower® power modules with Paxton Access hardware within a compact, secure enclosure designed for the security industry. The FPO Power Supply/Battery Charger offers dual power outputs, adjustable for either 12 or 24 VDC. The primary output delivers continuous power for system operations, while the secondary, resettable output activates upon fire alarm disconnect initiation.
For access control and lock power, the D8 unit provides eight individually fused outputs, each rated at 3A, which can be programmed for either constant power or Fire Alarm Interface (FAI) disconnect. The PCLASS enclosures, made of painted steel with a removable backplate, feature a lock, two keys, and a tamper switch.
**System Features**
**FPO Offline Power Supply**
– 120 or 230 VAC input
– 12 and 24 VDC outputs
– On-board Fire Alarm Interface
– Continuous and resettable DC power
**Distributed Outputs**
– Sixteen auxiliary outputs, each fused at 3A
**Expansion Options**
– Enhance power capabilities with multiple voltages
– Additional distribution outputs available
– Supports network monitoring and reporting
**Lifetime Warranty**
**Enclosure Features**
**Engineered NET2 Backplate**
– Custom mounting pattern accommodates a six-door system (six controllers plus two stacked)
**Labor-Saving Design**
– Pre-wired power section
– Pre-punched knockouts for easy installation
– Removable backplate simplifies installation
– Pre-defined power section hole pattern
– Threaded standoffs for tool-free access panel mounting
**Additional Benefits**
– Ample wire management space
– 4.5″ enclosure depth fits battery set
– Standard features include tamper switch, lock, and dual key set
– Comes with mounting hardware for access control boards
