Description

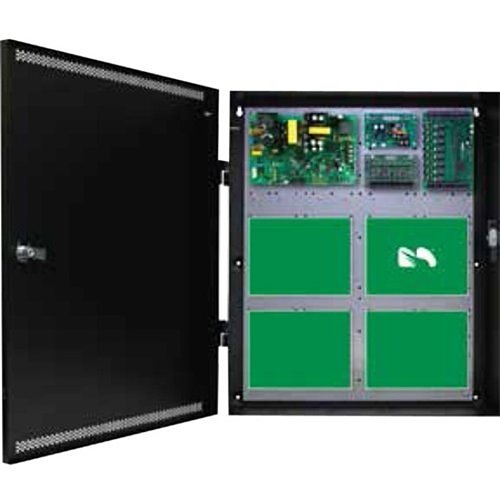

Overview: The MCLASS™ Unified Power Systems integrate FlexPower® power modules with Mercury Security™ access control hardware into a single compact, secure, and UL Listed solution.
This system offers a dual voltage configuration with 12V and 24V DC options for access control power requirements.
The C8 lock control module features eight access control inputs that support voltage or dry contact activation. Outputs are customizable for either failsafe or failsecure operations at 12V or 24V DC and are managed through the integrated fire alarm interface circuit on the FPO. The D8 module includes eight auxiliary Class II outputs, each of which can be set for 12V or 24V DC operation.
MCLASS enclosures are constructed from painted steel, featuring a removable backplate, and come with a lock, two keys, and a tamper switch for enhanced security and convenience.
