Description

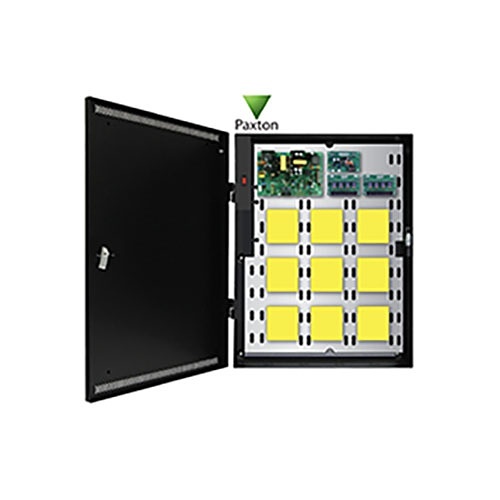

The PCLASS Unified Power Systems offer a unified, networked access control power solution by integrating FlexPower power modules with Paxton Access hardware in a compact, secure enclosure. This advanced system operates with both 12V and 24V DC dual voltage capabilities. Equipped with an M8 lock control module, it provides eight access control inputs that can be activated via voltage or dry contact, along with eight programmable outputs for failsafe or fail-secure operation at either 12 or 24 VDC, managed by the integrated fire alarm interface circuit on the FPO. Additionally, the D8 module offers eight auxiliary outputs, with each output configurable for 12 or 24 VDC operation. The network module effectively monitors both power supplies and battery systems. PCLASS enclosures are constructed from painted steel, featuring a removable backplate, and include a lock, two keys, and a tamper switch for enhanced security.
