Altronix Maximal75E Expandable Power Supply Charger, One P/S 24VDC at 10A and P/S 12VDC at 10A, BC800 Enclosure

Name: Altronix Maximal75E Expandable Power Supply Charger, One P/S 24VDC at 10A and P/S 12VDC at 10A, BC800 Enclosure
Brand: Altronix
SKU: MAXIMAL75E
Availability: InStock

in stock

In Stock

$778.38

Outputs with filtered and electronic regulation utilizing an integrated power supply.
Equipped with thermal and short circuit protection featuring automatic reset functionality.
AC supervision and battery monitoring capabilities.
Integrated charger compatible with sealed lead acid or gel-type batteries.
Seamless transition to standby batteries.
LED indicators for both AC input and DC output.
Enclosure designed to house up to four (4) 12VDC/12AH batteries.
Certified by UL in the U.S. and Canada.
Comes with a lifetime warranty and is manufactured in the U.S.A.

SKU: MAXIMAL75E Categories: Access Control, Power Products, Power Supplies Brand: Altronix

Description

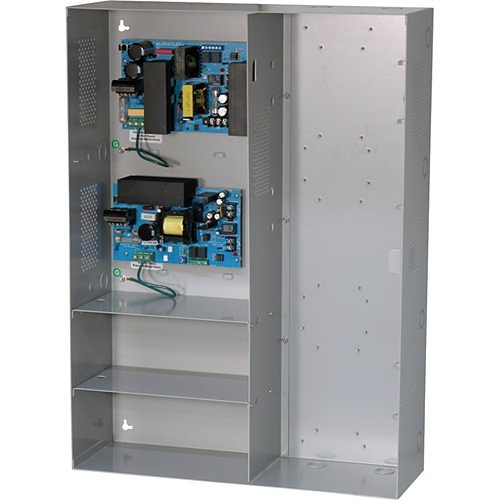

The Maximal Expandable Power System offers system designers and installers a wide array of power solutions and unmatched flexibility. It delivers options for 12VDC, 24VDC, or simultaneous 12VDC and 24VDC outputs through two single output power supply/chargers. Features include AC failure, low battery, and battery presence monitoring systems. Its custom enclosure accommodates up to four 12VDC/12AH batteries, enhancing its versatility in power management configurations.

Certifications
NDAA Compliant	Yes

General Information
Brand Name	Altronix
Manufacturer	Altronix Corporation
Manufacturer Part Number	MAXIMAL75E
Product Line	Maximal
Product Model	75E
Product Name	MAXIMAL75E
Product Type	Proprietary Power Supply

Miscellaneous
Compatibility	Access Control SystemsFire Alarm Applications
Environmental Certification	RoHS
Environmentally Friendly	Yes

Physical Characteristics
Depth	6.3"
Form Factor	Wall Mount
Height	26"
Weight (Approximate)	29.30 lb
Width	19"

Power Description
Input Voltage	110V AC
Output Current	10A

Technical Information
Output Voltage	12V DC, 24V DC

Warranty
Limited Warranty	Lifetime
