Brand: Altronix

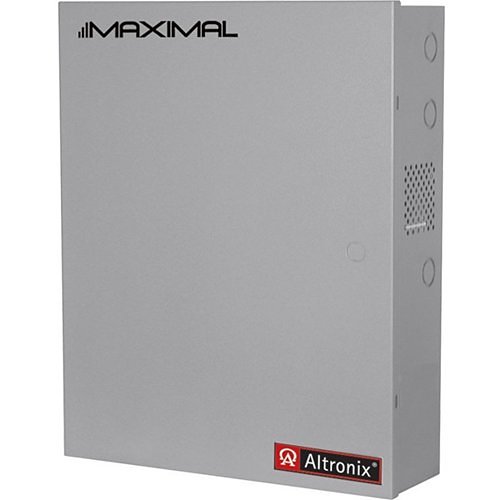

Altronix MAXIMAL75EV Maximal EV 230V AC,Enclosure

In Stock

$867.88

Outputs are electronically regulated and filtered.
Features thermal protection and short circuit protection with automatic reset functionality.
Monitoring capabilities for AC failure, low battery, and battery presence.
Integrated charger suitable for sealed lead-acid or gel type batteries.
Immediate switch over to backup batteries.
LED indicators for both AC input and DC output.
Enclosure capacity supports up to four 12VDC/12AH batteries.
Certified in accordance with CE European standards.
Comes with a lifetime warranty.

SKU: MAXIMAL75EV Categories: Access Control, Power Products, Power Supplies Brand: Altronix

Description

The Maximal75EV empowers system designers and integrators with extensive power options and exceptional versatility. This solution delivers 12VDC and 24VDC through two single output power supply/chargers and features AC failure, low battery, and battery presence monitoring. Optional field-installable sub-assemblies from Altronix® offer multiple outputs and an array of features tailored for specialized Access Control and Fire Alarm system applications.

Certifications
NDAA Compliant	Yes

General Information
Brand Name	Altronix
Manufacturer	Altronix Corporation
Manufacturer Part Number	MAXIMAL75EV
Product Line	Maximal
Product Model	Maximal75EV
Product Name	Maximal75EV Power Supply
Product Type	Power Supply

Miscellaneous
Environmental Certification	RoHS
Environmentally Friendly	Yes
Package Contents	1 x Enclosure, 26"H x 19"W x 6.25"D, Grey, 19 Gauge, Indoor 1 x Power Supply Charger, Single Fused Output, 12VDC @ 10A, 220VAC, Board 1 x Power Supply Charger, Single Fused Output, 24VDC @ 10A, 220VAC, Board

Physical Characteristics
Depth	6.3"
Form Factor	Enclosure
Height	26"
Weight (Approximate)	42.30 lb
Width	19"

Power Description
Input Voltage	230V AC

Warranty
Limited Warranty	Lifetime
