PRO4200 Professional Series Access Control Modules
The PRO4200 Professional Series access control solution is optimized for high-density installations within the security industry. It offers advanced management capabilities through integration with the WIN-PAK security suite, enabling features like video integration, comprehensive reporting, customizable rules, photo badging, elevator control, touchless access, and mobile credential management. This system supports up to 18 doors per enclosure and 34 doors per intelligent controller, accommodating up to 100,000 cards, and provides an exceptional cost-per-door ratio with a compact installation footprint.

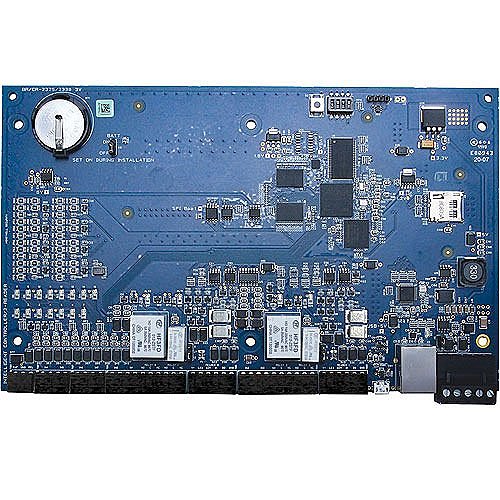

The PRO42IC Intelligent Controller offers I/O support for two doors, while the PRO42R1 and PRO42R2 modules support one and two card access readers, respectively, interfacing seamlessly with the intelligent control module. In cases of communication loss with the central controller, the card readers can be configured individually to manage entrance according to security protocols, allowing customization for secure, locked, or unlocked states.

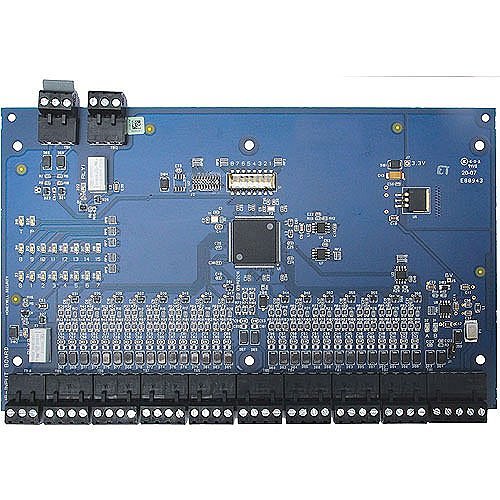

PRO4200 modules feature advanced bi-directional and encrypted OSDP communication with access control readers, ensuring robust security. For older and retrofit installations, the system maintains compatibility with the Wiegand format. The PRO42OUT interfaces provide up to 16 Form C relay output controls, which can be utilized for functions such as elevator management, status annunciation, and comprehensive facility control, including door monitoring. Meanwhile, the PRO42IN interfaces deliver 16 supervised alarm inputs with the ability to configure custom End-Of-Line (EOL) resistance values, sensitivity ranges, and timing parameters via an analog to digital conversion process for precise input monitoring.

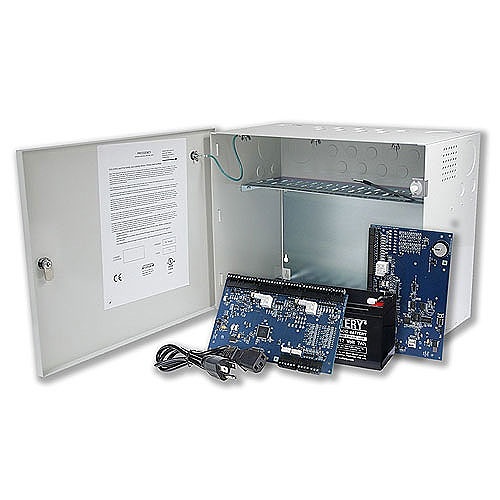

These access control modules are adaptable for diverse mounting requirements, allowing installation in rack configurations (PRO22ENC1, PRO22ENC2, and PRO22ENC5) or tile-mount setups (PRO22ENC3) to accommodate spatial constraints. The PRO4200 kit includes a wall-mount enclosure (PRO22ENC1) with capacity for nine modules, the PRO42IC Intelligent Controller for up to two doors with OSDP or Wiegand reader options, a rack-mounted power supply (PRO42PSU120), a 7AH 12V battery (PRO22BAT1), and a daisy chain cable (PRO22DCC) for seamless connectivity.
