Description
The Altronix RDC12 relay, engineered for DIN rail mounting, is crafted for continuous duty in demanding industrial environments. This robust and reliable relay is capable of managing any switching application efficiently.

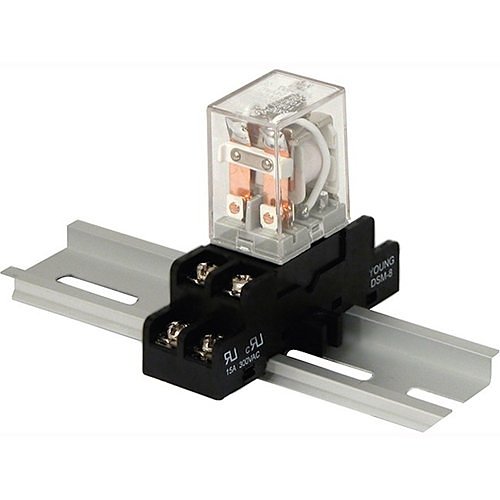

Altronix RDC12 DIN Rail Mountable Relay and Base Module, 12VDC, DPDT Contacts at 10A/220VAC or 28VDC
In Stock
In Stock
$23.62
- DIN Rail Mount Relay with Compatible Base.
- Operates at 12V DC with a current consumption of 86mA, featuring DPDT contacts designed for 10A/220V AC or 28V DC applications.
- UL Recognized for Compliance and Safety.
| Certifications | |
| TAA Compliant | Yes |
| General Information | |
| Brand Name | Altronix |
| Manufacturer | Altronix Corporation |
| Manufacturer Part Number | RDC12 |
| Packaged Quantity | 1 |
| Product Model | RDC12 |
| Product Name | RDC12 Relay |
| Product Type | Relay |
| Miscellaneous | |
| Additional Information | 12VDC operationCoil draws 86mA10 amp/120VAC/28VDC or 10 amp/277VAC DPDT contactsAgency Listings:ULCSA |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Physical Characteristics | |
| Application/Usage | Switching application |
| Depth | 2.7" |
| Form Factor | DIN Rail |
| Height | 2.4" |
| Weight (Approximate) | 2.40 oz |
| Width | 1.4" |
| Product Information | |
| Contact Type | DPDT |
| Warranty | |
| Limited Warranty | Lifetime |
