Description

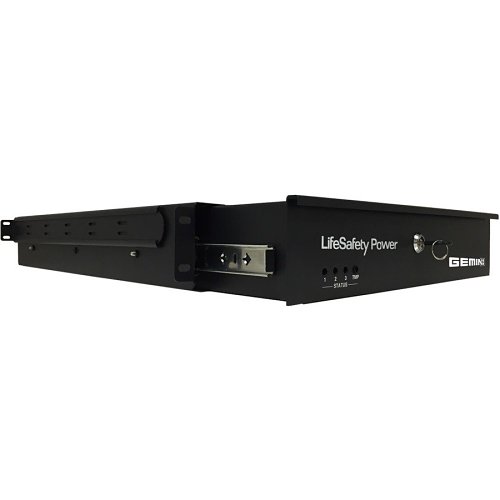

The RGM150 Series is a 150W integrated 2U rackmount power solution designed for optimized system power, lock power, and access control management. This versatile enclosure supports two Mercury controllers and multiple Life-Safety Power FlexPower® modules, aiming to control up to four doors in a standalone configuration or multiple doors when networked within an access control system. The specific LSP power modules align with the RGM model, while Mercury controllers can be tailored by the integrator to suit project requirements.
Options include single (12 or 24V DC) or dual voltage (12 and 24V DC) operation, advanced power distribution and control, individual output protection via fuses or class 2 power limiting, buffered lock control, and remote testing and reporting capabilities. Each Life-Safety Power (LSP) output is safeguarded against electrical surges and transients with SurgeShield™ technology. Selectable control outputs accommodate different DC voltages and allow for failsafe or failsecure operations, with a fire alarm interface option.
Optional network reporting functionalities provide insights into operational fault status, power supply outputs, battery charging metrics, and fire alarm input status. Automated and scheduled reports, coupled with remote diagnostics and battery load assessments, effectively minimize the necessity for on-site maintenance and servicing.
This unit is engineered to fit standard four-post EIA 19-inch electronics racks, accommodating a maximum depth of 36 inches.
Rackmount Features
- Seamlessly integrated access system combining lock and system power distribution
- Robust compartmentalized architecture for enhanced reliability
- Convenient rack drawer slide assembly for facilitating controller wiring and maintenance
- Comprehensive cable management with secure tie-down points and an articulating bracket
- Selectable 120 or 230V AC inputs, compatible with various data center electrical systems
Configuration Options
- Versatile single voltage or dual voltage (12 and 24V DC) configurations to meet all access control needs
- Flexible power distribution options: direct (D8), buffered (C8), or managed (M8)
- Customizable output options for failsafe/failsecure configurations, lock voltage, and fire alarm integration
- High-capacity battery charging capabilities
- Service-friendly automotive fuses for easy replacement
- Expandable door control with additional Gemini drawers
- Available rackmount battery housing option (part number RBE)
Network Monitoring
- Realtime monitoring and alerts for power supply metrics, battery operations, and fault detection
- Remote battery runtime testing, low battery notifications, and service alerts
- Capability to monitor and cycle individual outputs (with the M8N model)
- Temperature monitoring and alerts for the external environment
