Description

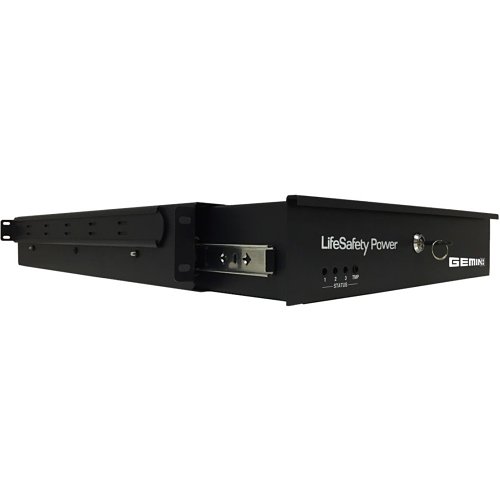

The RGM150 Series represents a robust 150W integrated 2U rackmount power system, specially designed for comprehensive access control solutions. This system seamlessly integrates system power, lock power, and Mercury controllers within its framework.
The RGM enclosures facilitate the installation of two Mercury controllers alongside multiple Life-Safety Power FlexPower® devices, supporting an access control system that manages up to four doors in a standalone setup, or more when interconnected. Depending on the RGM model number, LSP power modules are incorporated, with the Mercury controllers being sourced per project requirements by the system integrator.
This system offers versatile configuration options including single (12V or 24V DC) or dual voltage operation (12V and 24V DC), with features such as power distribution and control, individual output protection via fuses or Class 2 power limiting, buffered lock control, and capabilities for remote monitoring and testing. The SurgeShield™ protection safeguards each LSP output from electrical surges from lightning or transient external interferences. Additionally, each LSP control output supports user-selectable DC voltage settings for either failsafe or failsecure operation, complete with fire alarm interface compatibility.
The advanced network reporting options include capabilities to track operational fault status, power supply outputs, battery charging metrics (voltage and current), and fire alarm input status. These features enable automated status updates, diagnostic servicing, and battery load testing remotely, effectively minimizing or eliminating on-site servicing expenses.
The unit is engineered to fit within a standard four-post EIA 19-inch electronics rack, accommodating a maximum depth of 36 inches.
Rackmount Features
- Integrated access control system with comprehensive lock and power distribution
- Compartmentalized design to ensure maximum reliability
- Convenient rack drawer slide assembly for simplified controller wiring and maintenance
- Advanced wire management with tie-down points and flexible bracket
- Selectable 120 or 230V AC input compatible with data center electrical systems
Configuration Options
- Single voltage or dual 12V/24VDC options for diverse access control applications
- Power distribution options available: direct (D8), buffered (C8), or managed (M8)
- Tailored output selection for failsafe, failsecure operations, lock voltage, and fire alarm interface compatibility
- High-capacity battery charging capabilities
- Ease of serviceability with automotive fuses
- Seamless door expansion with multiple Gemini drawers
- Optional battery housing for enhanced rackmount integration (part number RBE)
Network Monitoring
- Monitor and alert on power supply, battery performance, and fault occurrences
- Conduct remote battery run-time tests, low battery alerts, and service timing alerts
- Manage and power cycle individual outputs (applicable to the M8N model)
- Monitor ambient room temperature with alert notifications
