Altronix T2AGK7F12 Trove2 Series 12-Door Amag Access and Power Integration Kit, Includes Trove2AG2 with eFlow104NB, ACM8, ACM4, VR6, PDS8

Name: Altronix T2AGK7F12 Trove2 Series 12-Door Amag Access and Power Integration Kit, Includes Trove2AG2 with eFlow104NB, ACM8, ACM4, VR6, PDS8
Brand: Altronix
SKU: T2AGK7F12
Availability: InStock

In Stock

Special Order

$1,069.27

The 12-Door Access Control Kit supplies 12/24V DC power at 6A, tailored for access control systems and related devices.
Equipped with 12 fuse-protected outputs for access control and 8 additional power outputs.
Features twelve (12) outputs configured for Fail-Safe/Fail-Secure operations or Dry Form C outputs.

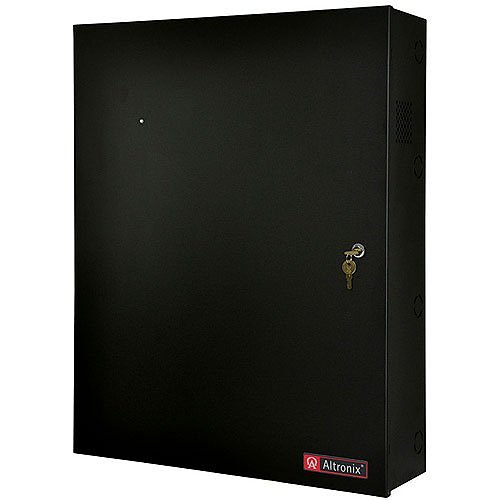

Comes with an enclosure and backplane that includes all necessary power modules and sub-assemblies pre-installed.

SKU: T2AGK7F12 Categories: Access Control, Power Products, Power Supplies Brand: Altronix

Description

The Altronix T2AGK7F12 kit includes a Trove2 enclosure and TAG2 AMAG/Altronix backplane. It features a 24VDC, 10A power supply/charger, dual 8-output fused access power controllers, a 4-output fused access power controller, a voltage regulator, and a dual input fused power distribution module. This comprehensive access control solution supports up to three AMAG M4000 modules for managing up to eight doors within a single enclosure. The Trove system enhances board layout efficiency and wire management, significantly reducing installation time and associated labor costs.

Certifications
NDAA Compliant	Yes

General Information
Brand Name	Altronix
Manufacturer	Altronix Corporation
Manufacturer Part Number	T2AGK7F12
Product Line	Trove
Product Name	Power Integration Kit
Product Series	2
Product Type	Power Integration Kit

Miscellaneous
Environmental Certification	RoHS
Environmentally Friendly	Yes
Package Contents	1 x TAG2 - Trove2 Backplane for Altronix/AMAG1 x Trove2 - Access and Power Integration Enclosure, Requires compatible Trove2 Series Backplaneand more below, 1 x ACM4 - Access Power Controller, 4 Fused Relay Outputs, FAI, Board, 1 x ACM8 - Access Power Controller, 8 Fused Relay Outputs, FAI, Board, 1 x eFlow104NB - Power Supply Charger, Single Output, 24VDC @ 10A, Aux Output, FAI, LinQ2 Ready, 115VAC, Board, 1 x PDS8 - Dual Input Power Distribution Module, 8 Fused Outputs, 1 x VR6 - Voltage Regulator. 24VDC input into 5VDC or 12VDC output

Physical Characteristics
Dimensions	21.5"W x 27.25"H x 6.5"D (546.1 mm W x 692.15 mm H x 165.1 mm D)
Material	Galvanized Steel
Weight (Approximate)	Product Weight: 54.6 Lbs. (24.8 kg)
