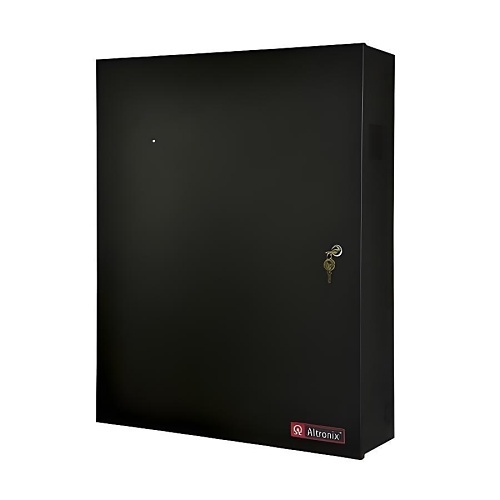

Altronix T2M3ESCK1 8-Door Mercury Access and Power Integration Kit for ESCS, Includes Trove2M2 with eFlow6NB, ACM8, VR6, PDS8

Name: Altronix T2M3ESCK1 8-Door Mercury Access and Power Integration Kit for ESCS, Includes Trove2M2 with eFlow6NB, ACM8, VR6, PDS8
Brand: Altronix
SKU: T2M3ESCK1
Availability: InStock

In Stock

Special Order

$987.64

Compatible with a range of Mercury controllers, including models like EP1502, LP1502, MR52, MR16IN, MR16OUT, EP1501, LP1501, MR51e, MR62e, MR50, EP2500, LP2500, and MUX8.
Features a versatile knockout configuration with a single 2" diameter knockout located at the top center of the enclosure and sixteen (16) double knockouts measuring 1" and 0.75".
Equipped with a 16 AWG galvanized steel backplane for streamlined board layout and efficient wire management.
Delivers filtered and electronically regulated power outputs.
Includes thermal and short circuit protection mechanisms, complete with auto-reset functionality.
Fitted with LED indicators for both AC input and DC output monitoring.
Offers supervision features, including AC fail detection, low battery and battery presence alerts, and low power shutdown capabilities.
Incorporates a built-in charger for sealed lead acid or gel-type batteries.
Ensures instantaneous transfer to standby batteries during power outages.

SKU: T2M3ESCK1 Categories: Access Control, Power Products, Power Supplies Brand: Altronix

Description

The Altronix T2MK3F8 solution comprises the Trove2 enclosure and TM2 Mercury/Altronix backplane, featuring a versatile 12V DC or 24V DC power supply/charger (factory set to 24V DC) with a 6A output. It includes a 12V DC voltage regulator, an eight-fuse protected output dual voltage power distribution module, and an eight-fuse protected output access control module. This comprehensive kit supports various configurations of Mercury/Lenel boards to manage access for up to eight doors within a single enclosure. Trove streamlines board organization and wire management, significantly reducing installation time and labor expenses.

Certifications
NDAA Compliant	Yes

General Information
Brand Name	Altronix
Manufacturer	Altronix Corporation
Manufacturer Part Number	T2M3ESCK1
Product Line	Trove
Product Model	T2M3ESCK1
Product Name	Altronix T2M3ESCK1 8-DR 6A Fused Access and Power Integration
Product Series	2
Product Type	Power Supply

Miscellaneous
Compatibility	Accommodates the following Mercury controllers - EP1502, LP1502, MR52, MR16IN, MR16OUT, EP1501, LP1501, MR51e, MR62e, MR50, EP2500, LP2500, MUX8

Physical Characteristics
Depth	6.5"
Height	27.25"
Weight (Approximate)	39.6 lb
Width	21.5"

Power Description
Input Voltage	120V AC
