Description

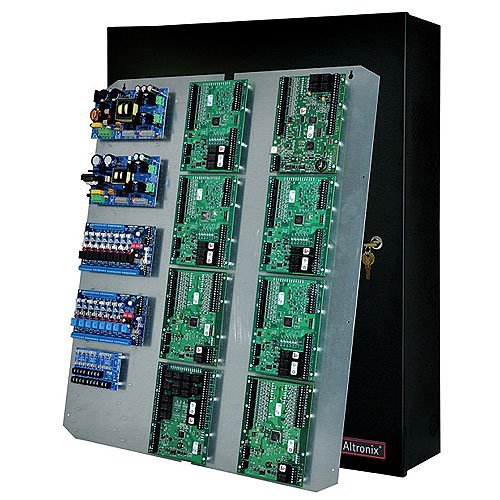

The Altronix T3MK75F16 kit is a comprehensive access control and power management solution featuring the Trove3 enclosure and TM3 backplane compatible with Altronix and Mercury/LenelS2 systems. This kit includes robust power supply/chargers providing 24VDC at 10A and 12VDC at 10A, an eight-fuse protected output power distribution module, and two eight-fuse protected output access control modules. It supports various configurations of Mercury/LenelS2 boards to manage up to sixteen doors within a single enclosure. The Trove platform enhances board layout, ensures efficient wire management, and minimizes both installation time and labor costs.
Kit Components:
– eFlow104NB Power Supply Charger: Single Output, 24VDC @ 10A, Aux Output, FAI, LinQ2 Ready, 115VAC.
– eFlow102NB Power Supply Charger: Single Output, 12VDC @ 10A, Aux Output, FAI, LinQ2 Ready, 115VAC.
– (2) ACM8 Access Power Controller: 8 Fused Relay Outputs, FAI.
– PD8UL Power Distribution Module: 8 Fused Outputs up to 28VAC/VDC.
– Trove3 Access and Power Integration Enclosure: Requires compatible Trove3 Series Backplane.
– RSB2 Dual Power ON/OFF Rocker Switches with Mounting Bracket.
– TM3 Trove3 Backplane for Altronix & Mercury.
