Brand: Altronix

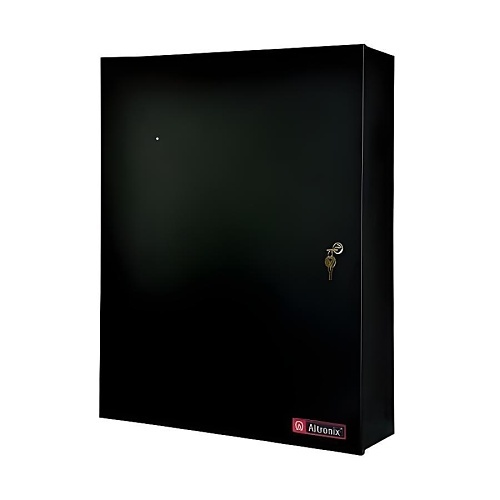

Altronix T3MK77F16DQNF Mercury 16-Door Access and Power Integration Enclosure with Backplane for Netflix

Name: Altronix T3MK77F16DQNF Mercury 16-Door Access and Power Integration Enclosure with Backplane for Netflix
Brand: Altronix
SKU: T3MK77F16DQNF
Availability: InStock

in stock

Special Order

$2,647.02

Compatible with Mercury controllers such as EP1502, MR52, MR16IN, MR16OUT, EP2500, and MUX8
Designed with a practical knockout configuration featuring a single 2.415" diameter knockout at the top of the enclosure, two double knockouts (1.948" and 1.5"), and thirteen double knockouts (1.115" and 1.362")
Robust 16 AWG galvanized steel backplane enhances circuit board organization and efficient wire management
Includes filtered and electronically regulated power outputs
Incorporates thermal and short circuit protection with automatic reset functionality
Features AC input and DC output LED indicators for easy monitoring
Provides supervision for AC failure, low battery, battery presence, and includes a low power shutdown feature
Equipped with a built-in charger supporting sealed lead acid or gel type batteries
Ensures instantaneous transition to standby batteries

SKU: T3MK77F16DQNF Categories: Access Control, Power Products, Power Supplies Brand: Altronix

Description

The Altronix T3MK77F16D kit features a Trove3 enclosure paired with a TM3 Mercury/Altronix backplane. It includes dual 24VDC 10A power supply/chargers, two eight-channel PTC protected output access control modules, and two eight-channel PTC protected output power distribution modules. This setup is designed to support various combinations of Mercury/Lenel boards, accommodating up to sixteen doors within a single enclosure. The Trove solution optimizes board layout and wire management, significantly cutting down on installation time and labor expenses in the security system integrator industry.

Certifications
NDAA Compliant	Yes

General Information
Brand Name	Altronix
Manufacturer	Altronix Corporation
Manufacturer Part Number	T3MK77F16DQNF
Product Line	Trove
Product Model	T3MK77F16DQNF
Product Name	Altronix T3MK77F16DQNF 16-Door Mercury Access and Power Integration Kit
Product Series	3
Product Type	Access and Power Integration Kit

Miscellaneous
Compatibility	Mercury controllers - EP1502, MR52, MR16IN, MR16OUT, EP2500, MUX8
Environmental Certification	UL

Physical Characteristics
Depth	7.06"
Height	36.12"
Weight (Approximate)	85.6 lb
Width	30.125"

Power Description
Input Voltage	120V AC
Output Current	10A

Technical Information
Output Voltage	24V DC
