in stock
In Stock
$77.51

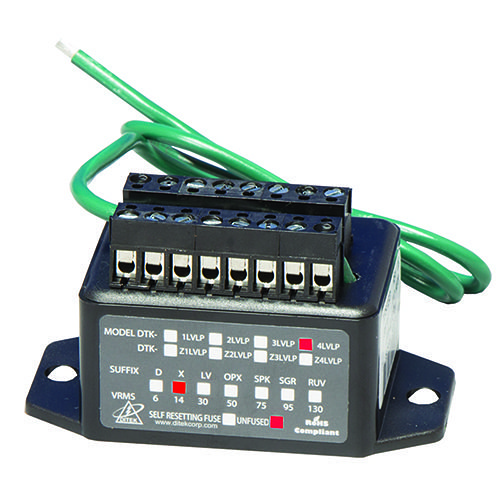

DITEK’s Low Voltage Line Protector series offers robust surge protection solutions for signal circuits, data lines, and loop circuits in a compact, hard-wired design. These surge protectors are ideal for safeguarding 4-20mA current loops, alarm panel NAC, SLC, and IDC loops, as well as burglar alarm panels. Available models cover the protection of 1, 2, 4, or 8 pairs of connections. The LVLAWG models are designed to accommodate wiring connections ranging from #14 to #10 AWG.
| Certifications | |
| NDAA Compliant | Yes |
| TAA Compliant | Yes |
| General Information | |
| Brand Name | DITEK |
| Manufacturer | DITEK Corporation |
| Manufacturer Part Number | DTK-4LVLPX |
| Product Model | DTK-4LVLPX |
| Product Name | DTK-4LVLPX Surge Suppressor |
| Product Series | LVLP |
| Product Type | Surge Suppressor/Protector |
| Miscellaneous | |
| Compatibility | Alarm Panels |
| Environmental Certification | RoHS |
| Others | |
| ADI Part Number Replaces | DK-3LVLPX |
| Model Number Replaces | DTK-3LVLPX |
| Physical Characteristics | |
| Depth | 1.6" |
| Height | 1.6" |
| Weight (Approximate) | 2.40 oz |
| Width | 3" |
| Power Description | |
| Input Voltage | 14V AC |
| Technical Information | |
| Dataline Protection | Datacommunication |
| Output Voltage | 14V DC |
| Warranty | |
| Limited Warranty | 10 Year |
