Description

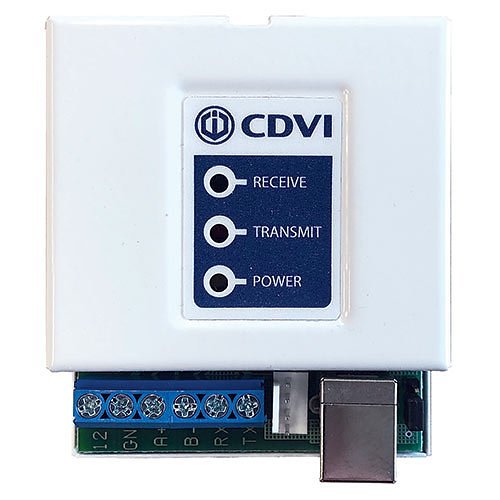

The CA-A360-USB CAB RS-485 Converter is a critical component for extending communication capabilities in access control systems. It facilitates a “daisy-chain” configuration between the central server and the CT-V900-A controller, enabling communication over distances up to 1220 meters (4000 feet). This converter features Transmit, Receive, and Power LEDs to visually indicate operational status.
This device is essential when the server and CT-V900-A controller are separated by more than 8.5 meters (25 feet).
Technical Specifications:
- Converts from RS-485 to USB or RS-232 protocols
- Supports communication with the CT-V900-A controller up to 1220 meters (4000 feet) away.
- Utilizes two twisted pair UTP cables (Cat 5)
- Features Transmit, Receive, and Power status indicators
- Includes on-board End-Of-Line (EOL) and BIAS jumpers
- Comes with a 2-meter (6-foot) 9-Pin D-Sub RS-232 connector
- Operates on 12VDC power or via a USB PC port
- Maximum current consumption of 100mA
- Selectable baud rates of 9600 or 19200 bps
