Description

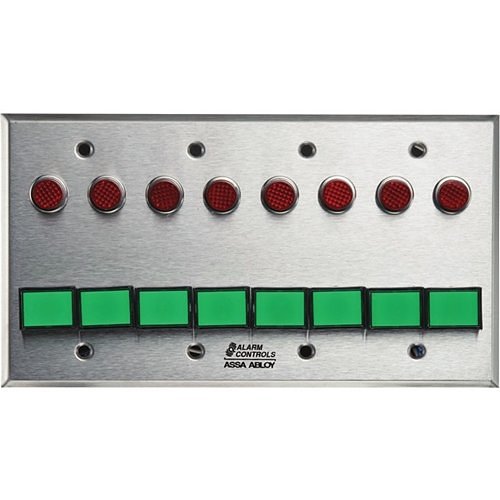

Enhance your security monitoring and control setup with rectangular illuminated DPDT (Double Pole Double Throw) momentary switches, designed to stay active as long as they are pressed. These control panels incorporate LED status indicators for real-time system updates and are designed to release or lock and monitor multiple electrified locks.
Product Features | Standard Features
- Control, secure, and monitor multiple electrified locks
- Switches are mounted on a stainless steel wall plate, available in 1, 2, 3, or 4 gang options
- 1/2″ red LED status indicator for visibility
- Momentary push button in green with high-brightness LED illumination
Customization Options
- XM model allows customization of the number of LEDs and illuminated momentary buttons, selectable from 1 to 8
- Custom legends, and green and yellow LEDs available for tailored applications
Technical Specifications | Dimensions
Dimensions vary based on the finished model
Electrical:
- DPDT switch contacts rated at 3A for 35 VDC or 120 VAC
- Switch depth behind the faceplate is 1-1/2″
- LED operates on 12 or 24 VDC/VAC
- Switch and LED connections are color-coded for easy installation
