CDVI CA-A460-P Centaur Relay Expansion Module

Name: CDVI CA-A460-P Centaur Relay Expansion Module
Brand: CDVI
SKU: CA-A460-P
Availability: InStock

in stock

Special Order

$299.22

Here's a revised version maximizing the use of industry keywords:

*Key Features:*
- Provides 7 form C relay outputs with ratings of 5A/28V DC, featuring normally open (N.O.) and normally closed (N.C.) contacts.
- Supports integration of up to two CA-A460-P modules for each CT-V900-A access control unit.
- Establishes a direct connection with the CT-V900-A expansion bus (E-BUS) for seamless communication.
- Offers connectivity over distances up to 1220 meters (4000 feet) from the CT-V900-A control panel.
- Operates with a power input of 12 VDC.
- Exhibits a current draw of 50mA under typical conditions, peaking at 400mA for maximum operation.

SKU: CA-A460-P Categories: Access Control, Control Panel Modules, Control Panels Brand: CDVI

Description

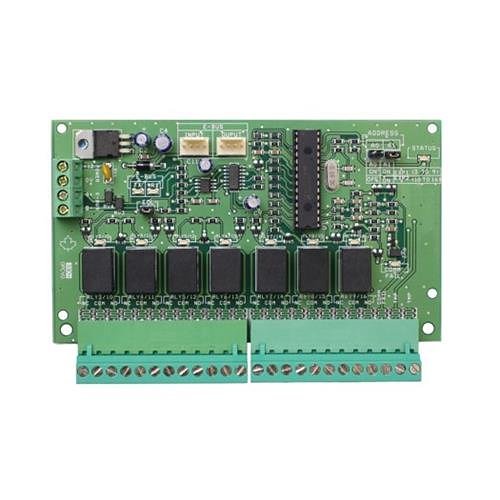

The CA-A460-P Relay Expansion Module is designed to enhance the CT-V900-A Controller by offering an additional seven relays. Each controller can support up to two “plug and play” relay expansion modules, bringing the total relay count to 16 per controller. These relay expansion modules connect to the controller through an RS-485 E-bus network, allowing for installation up to 1220 meters (4000 feet) from the controller. Key features of this module include activation status LEDs for each relay, a communication failure LED with an alert output, a 24-hour anti-tamper input, and supply monitoring. Optional removable terminals are also available.
