Brand: Kantech

Kantech KT-PC4216 16-Output Expansion Module for KT-300 Controller

Name: Kantech KT-PC4216 16-Output Expansion Module for KT-300 Controller
Brand: Kantech
SKU: KT-PC4216
Availability: InStock

in stock

Special Order

$178.82

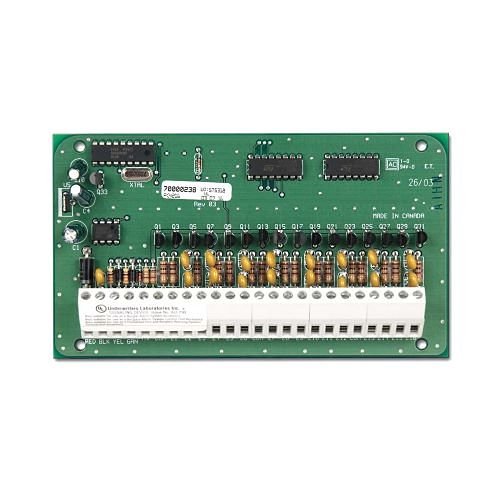

Package includes: One KT-PC4216 circuit board, with four plastic standoffs
16-output low current module, operational at 12V DC, supporting a maximum of 50 mA per output, utilizing power from Combus (Combus supports up to 500 mA; a KT-PC4204 module in repower mode may be utilized to enhance Combus capacity to 1A).
Interfaces with KT-300 utilizing a 4-wire Combus connection
Features a nominal current draw of 15 mA
Equipped with a tamper contact input
Suitable for elevator control solutions

SKU: KT-PC4216 Categories: Access Control, Control Panel Modules, Control Panels Brand: Kantech

Description

The KT-PC4216 module is a 16-zone output module with an open-collector compatible with 12 VDC systems, ideal for elevator access control applications. Implementing this module for elevator systems may necessitate supplementary hardware. The module should be installed inside a suitable enclosure, such as the KT-4501CAB cabinet, and positioned in a dry, secure area to maintain system integrity. It should also be easily accessible to connected devices for optimal functionality.
