Description

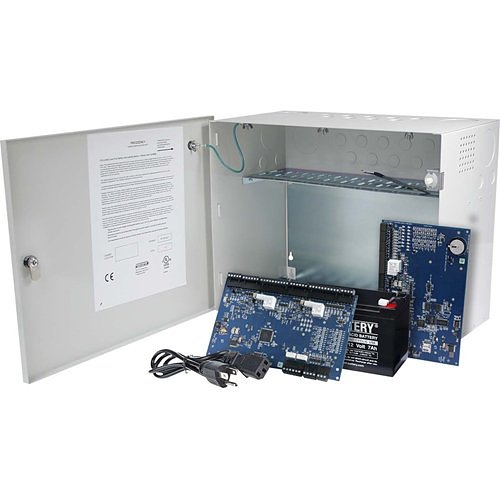

The PRO4200 Series access control modules are engineered specifically for high-density installation environments. These modules are compatible with the WIN-PAK integrated security suite, offering advanced capabilities such as video integration, enhanced reporting, rule-based automation, photo badging, elevator control, touchless access, and mobile credential management. Supporting up to 18 doors per enclosure and 34 doors per intelligent controller, with a card capacity reaching 100,000, the PRO4200 Series delivers an optimal combination of space efficiency and cost-effectiveness per access point. The latest PRO42IC Intelligent Controller extends I/O support for two doors, while the PRO42R1 and PRO42R2 offer support for one and two card access readers respectively, interfacing seamlessly with the intelligent controller. In cases where communication with the intelligent control module is interrupted, each card access reader can be configured individually to meet specific security requirements, offering secured, locked, or unlocked states. PRO4200 modules utilize the most recent bidirectional and strongly encrypted OSDP communication standards with access control readers, yet still accommodate legacy installations requiring Wiegand format support. The PRO42OUT interface allows control of up to 16 form C, 30 VDC, 2A relay outputs, depending on whether the board is rack or tile-mounted, with additional features for power fail and panel tamper protection in tile-mounted setups. These relays are versatile for tasks such as elevator control, status annunciation, and general facility management, including door monitoring. The PRO42IN interface offers 16 supervised alarm inputs with dedicated power failure and panel tamper monitoring when tile-mounted, utilizing an analog-to-digital converter to process and filter input values. Each input point’s filter parameters can be customized, allowing for tailored End-Of-Line (EOL) resistance values, sensitivity ranges, and timing parameters. The PRO4200 Series modules are adaptable to varying installation configurations, allowing for rack-mounted (PRO22ENC1, PRO22ENC2, and PRO22ENC5) or tile-mounted (PRO22ENC3) setups to suit different space constraints. The PRO22ENC1 is designed for wall-mounted enclosure, the PRO22ENC2 fits into a 19″ rack-mounted setup, and the PRO22ENC5 is intended for integration within a customer’s enclosure.
