Description
The PRO4200 Professional Series access control modules are engineered for high-density environments, catering to advanced access management needs. These modules integrate seamlessly with the WIN-PAK security suite, offering enhanced features such as video integration, advanced reporting, custom rules, photo badging, elevator control, touchless access, and mobile credential management. Capable of supporting up to 18 doors per enclosure and 34 doors per intelligent controller, along with a card capacity of up to 100,000, the PRO4200 Series combines a compact installation footprint with an excellent cost-per-door ratio.
The PRO42IC Intelligent Controller supports I/O for two doors, providing scalable control solutions. The PRO42R1 supports I/O for one card access reader, while the PRO42R2 accommodates two readers, interfacing directly with the intelligent controller. In scenarios where communication with the intelligent control module is disrupted, each card reader can be individually configured for secure access based on specific security protocols, allowing settings such as secured, locked, and unlocked modes.
The PRO4200 modules offer state-of-the-art bi-directional and strongly encrypted OSDP communication with access control readers, while also supporting Wiegand format for legacy and retrofit installations. The PRO42OUT interfaces deliver up to 16 Form C relays for elevator control, status annunciation, and general facility management. Each relay within these interfaces can handle 30 VDC and 2A loads, with features varying based on rack or tile mounting.
Additionally, the PRO42IN interfaces feature 16 supervised alarm inputs, along with dedicated power fail and panel tamper alerts when tile mounted. An analog-to-digital converter processes input values, which are then filtered based on configurable parameters, allowing customizable settings for End-Of-Line (EOL) resistance, sensitivity, and timing for each input point.

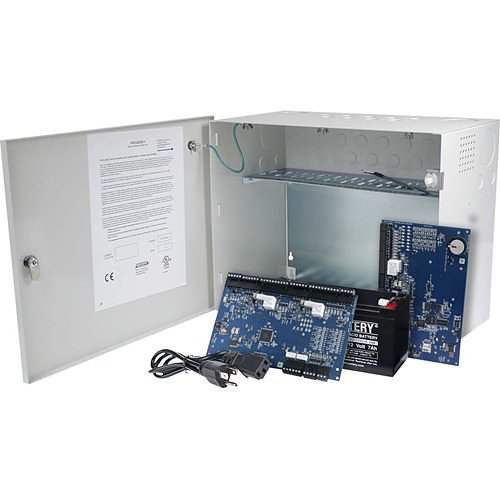

Designed for flexibility, the PRO4200 Series accommodates multiple mounting configurations. Options include rack mounting with models like PRO22ENC1, PRO22ENC2, and PRO22ENC5 for space-conscious installations, or a tile-mount configuration with the PRO22ENC3. The PRO22ENC1 is a wall-mounted rack unit, the PRO22ENC2 is a 19″ rack-mounted unit, and the PRO22ENC5 is designed to fit within a customer’s custom enclosure.
