Description
The NAE-2DM 2-Door Access Control System, capable of expansion to manage up to 4 doors with standard power supply.

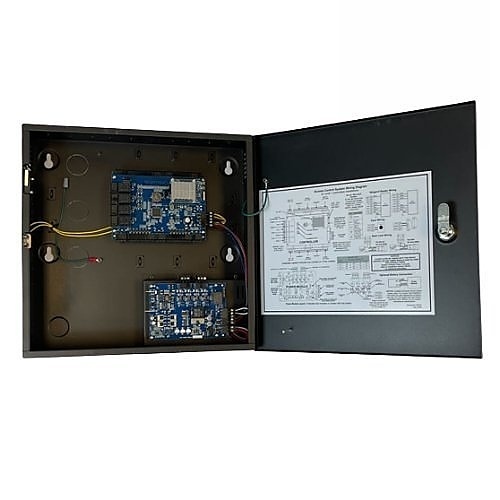

Napco NAE-2DM E-Access 2-Door Controller Expandable up to Doors
in stock
Special Order
$680.33
- Each access control unit serves as a server, expansion panel, or elevator module
- Plug-and-play with browser-based management
- Powered by an embedded Linux operating system
- Scalable to accommodate up to 4 doors within the same enclosure using NAE-ACM
- Includes 4 reader ports – 2 for input and 2 for output
- Equipped with 4 Form C relays – 2 for locks and 2 for auxiliary functions
- Features 6 inputs – 2 for request to exit, 2 for door position switch, and 2 for auxiliary purposes
- Complies with ETL and UL294 standards
- Offers a 3-year hardware warranty
SKU:
NAE-2DM
Categories: Access Control, Control Panels, Control Panels
Brand: Napco Security Technologies
| General Information | |
| Brand Name | Napco Security Technologies |
| Manufacturer | Napco Security Technologies |
| Manufacturer Part Number | NAE-2DM |
| Product Line | E-Access |
| Product Model | NAE-2DM |
| Product Name | NAE-2DM 2-Door Controller, Expandable up to 4 Doors with Basic Power |
| Product Type | Door Access Control System |
| Interfaces/Ports | |
| Wiegand | Yes |
| Physical Characteristics | |
| Application/Usage | Door Access |
| Depth | 3.8" |
| Height | 14.3" |
| Width | 14.3" |
| Power Description | |
| Input Voltage | 120V AC, 12V DC |
| Technical Information | |
| Number of Doors | 2 |
| Number of Readers | 4 |
| Warranty | |
| Limited Warranty | 3 Year |
