Description
PRO4200 Professional Series Access Control Modules
The PRO4200 Professional Series is a versatile access control solution designed for high-density installations. It seamlessly integrates with the WIN-PAK security suite, enabling advanced features such as video integration, sophisticated reporting, customizable rules, photo badging, elevator management, touchless access, and mobile credentialing. With support for up to 18 doors per enclosure and 34 doors per intelligent controller, along with a capacity for up to 100,000 cards, the PRO4200 Series strikes the perfect balance between minimal installation footprint and cost-effectiveness per door.

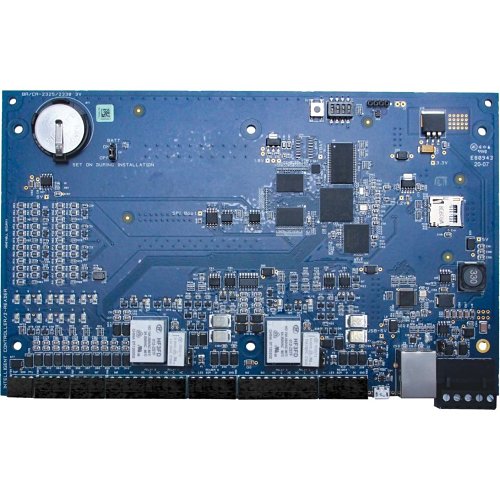

The new PRO42IC Intelligent Controller offers I/O support for two doors, while the PRO42R1 supports one card reader and the PRO42R2 accommodates two card readers, both interfacing with the intelligent control module. In case communication with the control module is disrupted, the card readers can be individually configured to align with security requirements, offering options for secured, locked, and unlocked access states.

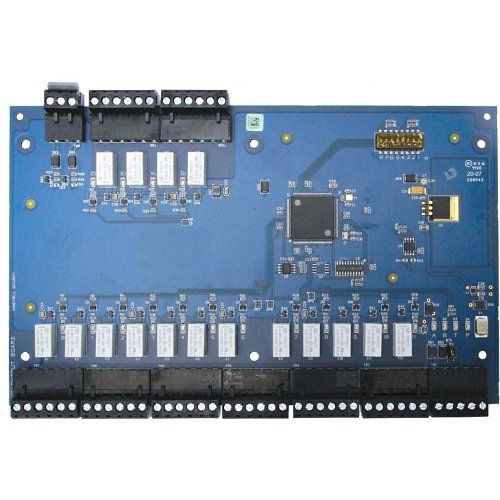

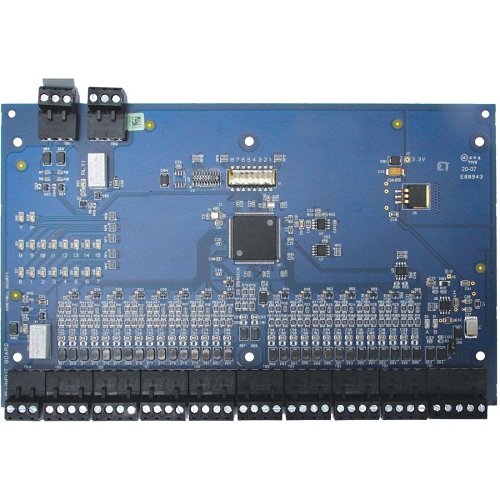

The PRO4200 modules boast the latest bi-directional and strong encrypted OSDP communications with access control readers, and also support the Wiegand format for legacy and retrofit setups. The PRO42OUT interface provides up to 16 Form C relay outputs, configurable for functions like elevator control, status annunciation, and general facility management, including door monitoring. Additionally, the PRO42IN interface includes 16 supervised alarm inputs with the ability to configure filter parameters, such as custom End-Of-Line resistance, sensitivity range, and timing for each input.
The PRO4200 Series supports various mounting configurations, suitable for both space-limited rack setups (PRO22ENC1, PRO22ENC2, and PRO22ENC5) and tile-mount configurations (PRO22ENC3).

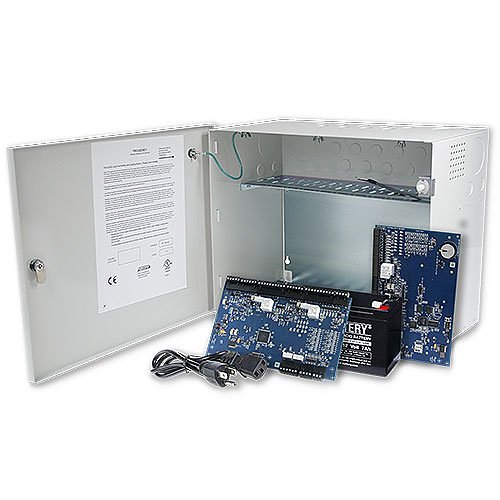

Kit Includes:
– (1) PRO42R2 Dual Reader Module
– (2) S-4 Suppressor Cables
– (1) PRO42E1EN Network Kit
– PRO22ENC1 Wall-mount Enclosure, with a capacity of 9 modules
– PRO42IC Intelligent Controller for up to 2 doors, supporting a maximum of 2 OSDP readers or 1 Wiegand reader per door
– PRO42PSU120 Rack-mounted power supply
– PRO22BAT1 Battery, 7AH 12V
– PRO22DCC Daisy Chain Cable
