Brand: Kantech

Kantech EK-400 Access Control Expansion Kit, 3-Piece, (1) KT-400 Controller, (1) TR1675 Transformer, (1) KT-BATT-12 Battery

Name: Kantech EK-400 Access Control Expansion Kit, 3-Piece, (1) KT-400 Controller, (1) TR1675 Transformer, (1) KT-BATT-12 Battery
Brand: Kantech
SKU: EK-400
Availability: InStock

in stock

In Stock

$2,444.38

Accommodates up to four access control readers and allows for input, output, and relay expansion through additional modules
Integrates onboard Ethernet with 128-bit AES-encrypted communication for robust network security within the EntraPass system
Utilizes anti-passback functionality to manage occupancy levels in designated areas
Offers a substantial capacity for up to 100,000 access cards and supports 20,000 concurrent events in stand-alone mode
Features removable terminal blocks for streamlined installation and improved serviceability
Provides scalability with up to 256 inputs (16 onboard with high-security double end-of-line resistor configuration) and 256 outputs (four onboard)
Engages with the EntraPass Gateway only upon event occurrence to minimize network bandwidth usage (available in Special and Corporate Editions only)
Equipped with a built-in web configuration page for IP setting verification and configuration
Includes supervised door lock outputs compatible with both internal and external power supplies
Incorporates LEDs to deliver key controller status and diagnostic insights

SKU: EK-400 Categories: Access Control, Control Panel Kits, Control Panels Brand: Kantech

Description

The Expansion Kits provide a complete and user-friendly access control solution for small to medium-sized enterprises, allowing them to incrementally enhance their security systems by one door (KT-1), two doors (KT-300), or four doors (KT-400). These kits are designed to seamlessly integrate with EntraPass Special Edition, Corporate Edition, and Global Edition software.

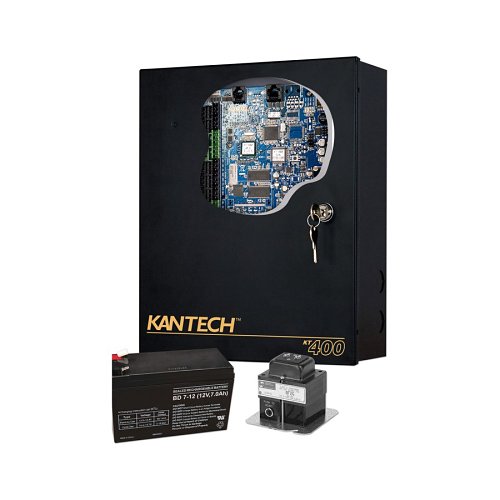

The KT-400 Expansion Kit comprises the KT-400 Controller, TR1675 Transformer, and KT-BATT-12 Battery, and is available in the US and Canada.

General Information
Brand Name	Kantech
Manufacturer	Johnson Controls
Manufacturer Part Number	EK-400
Product Model	EK-400
Product Name	KT-400 Expansion Kit
Product Type	Door Access Control System

Interfaces/Ports
Network (RJ-45)	Yes
Serial	Yes

Miscellaneous
Environmental Certification	RoHS, WEEE
Environmentally Friendly	Yes
Package Contents	1 x KT-400 Controller 1 x TR1675 Transformer 1 x KT-BATT-12 Battery

Network & Communication
Ethernet Technology	Ethernet

Physical Characteristics
Application/Usage	Door
Depth	5"
Height	14.8"
Width	12"

Power Description
Input Voltage	16V DC

Technical Information
Number of Doors	4
Number of Users	100000
