Description
PRO4200 Professional Series Access Control Modules
The PRO4200 Professional Series access control modules are engineered for high-density installations, making them ideal for extensive security needs. This series is compatible with the WIN-PAK integrated security suite, offering advanced features like video integration, sophisticated reporting, rule configuration, photo badging, elevator control, touchless access, and mobile credential management. The system supports up to 18 doors per enclosure and 34 doors per intelligent controller, with a capacity for up to 100,000 cards, providing an optimal cost per door and a compact installation footprint.

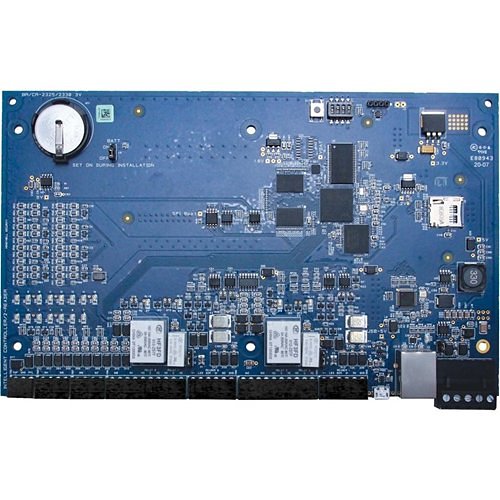

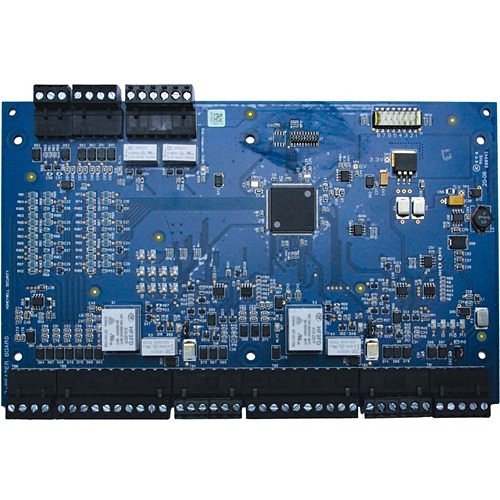

The latest PRO42IC Intelligent Controller offers input/output support for 2 doors. The PRO42R1 supports one card reader, while the PRO42R2 accommodates two card readers, both interfacing seamlessly with the PRO42IC intelligent control module. In cases of communication failure with the control module, the card readers can be individually configured to manage entrances based on specific security requirements, allowing them to be set as secured, locked, or unlocked.

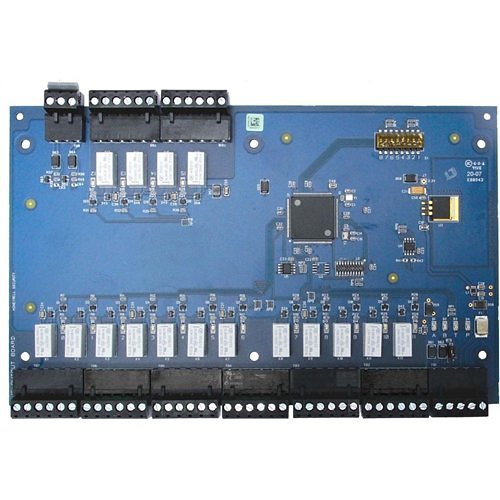

The PRO4200 modules feature cutting-edge bi-directional and highly encrypted OSDP communication with access control readers. For legacy and retrofit system installations, Wiegand format support remains available. PRO42OUT interfaces offer up to 16 Form C, 30 VDC, 2A relay output controls, dependent on whether the board is rack or tile-mounted, providing elevator control, status annunciation, and general facility monitoring capabilities.

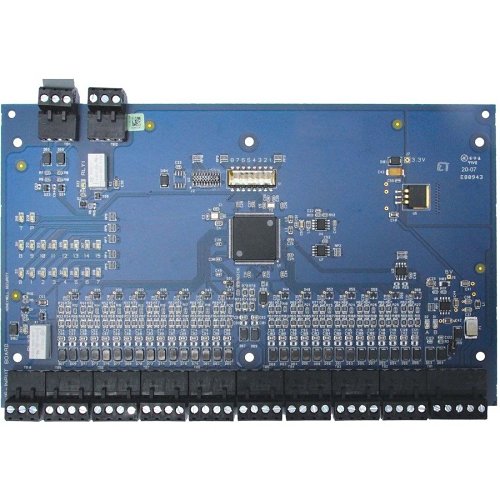

With 16 supervised alarm inputs, the PRO42IN interfaces include dedicated power fail and panel tamper alerts when tile-mounted. An analog-to-digital converter processes the input values, with configurable filter parameters for each input, allowing for customized End-Of-Line resistance, sensitivity range, and timing parameters.
The PRO4200 Series also provides flexible mounting options. Units can be mounted in compact rack configurations (PRO22ENC1, PRO22ENC2, PRO22ENC5) or tile-mounted (PRO22ENC3) for versatile space management.

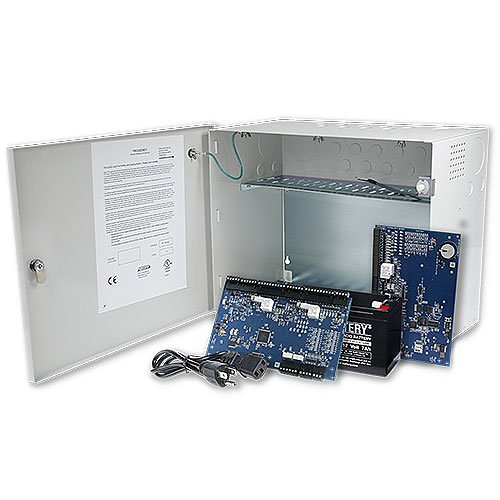

The comprehensive kit includes:
– (2) PRO42R2 Dual Reader Modules
– (4) S-4 Suppressor Cables
– (1) PRO42E1EN Network Kit
– PRO22ENC1 Wall-mount Enclosure with a capacity of 9 modules
– The PRO42IC Intelligent Controller for 2 doors with maximum 2 OSDP readers per door or 1 Wiegand reader per door
– PRO42PSU120 Rack-mounted power supply
– PRO22BAT1 Battery, 7AH 12V
– PRO22DCC Daisy Chain cable
