Description

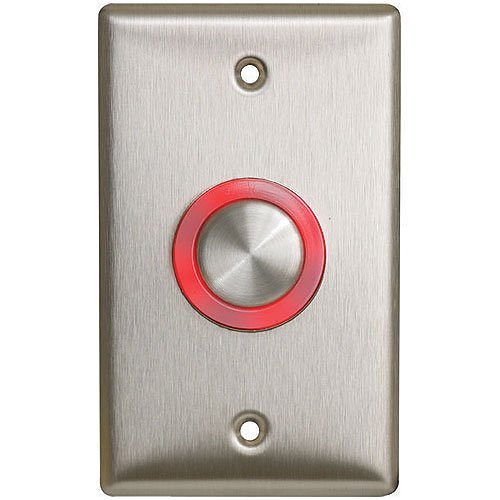

The CM-9600 and CM-9610 Series flush mount illuminated piezo push switches deliver exceptional visibility along with robust resistance to weather and vandalism, making them ideal for demanding environments. These switches are equipped with a durable stainless steel faceplate and feature an adjustable 40-second timer for versatile applications.
The CM-9600 model has a single gang width of 2-3/4″, while the CM-9610 is only 1-3/4″ wide, making it an excellent choice for installation on door frames or in narrow spaces. Designed for ease of use, the large 1″ round button is straightforward to activate. The power relay and illumination system operates at 12 to 24 VDC. Users can select the switch illumination via jumper settings, choosing from options such as On, Off, Green to Red, Red to Green, or non-lit operation. The devices also offer field-selectable options for N/O or N/C contact output and support fail safe/fail secure configurations.
Please note that these switches are not recommended for controlling automatic doors.
